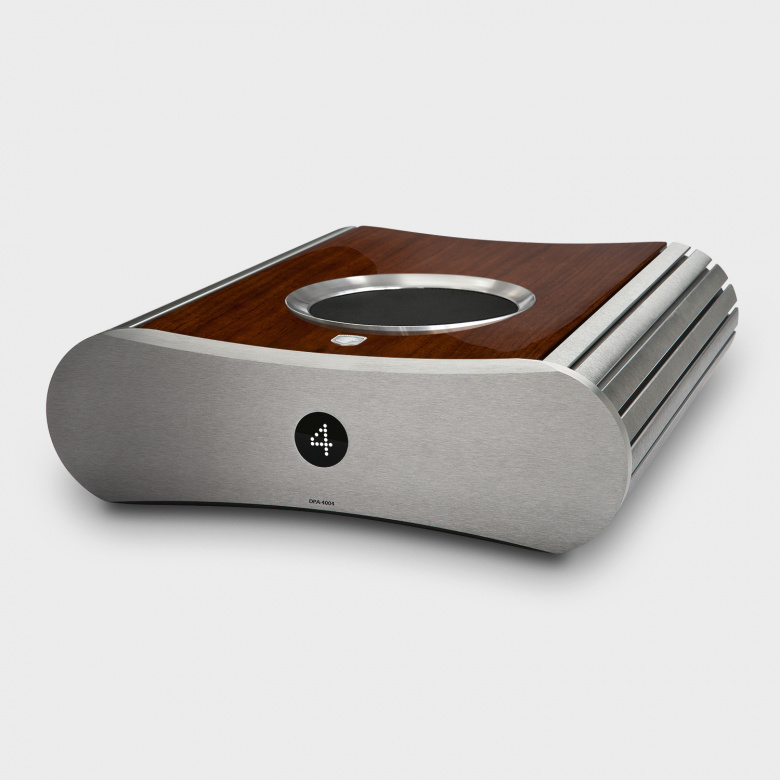

4 Channel Power Amplifier

At a Glance

OUTPUT POWER @ 8 O 4x400W / 2x800W / 1x800W +2x400W OUTPUT POWER @ 4 O 4x800W / 2x1600W / 1x1600W +2x800W FREQUENCY RESPONSE 20 Hz-20 kHz - 0.5 dB, and 2 Hz-70 kHz - 3 dB TOTAL HARMONIC DISTORTION < 0,01% at rated power SIGNAL TO NOISE RATIO > 110 dB INPUT IMPEDANCE 20 kO RCA or 40 kO Balanced VOLTAGE GAIN 26 dB RECOMMENDED SPEAKER LOAD SE 4 -16 O , BTL 8 -16 O CONNECTORS BALANCED ANALOGUE INPUTS 2 pairs gold plated XLR Neutrik UNBALANCED ANALOGUE INPUTS 2 pairs of gold plated RCA Stereo SPEAKER OUTPUT 4 pairs of gold plated safety banana TRIGGER, 12 V 1 pc mini jack SIZE AND WEIGHT POWER REQUIREMENTS 115 VAC/230 VAC, 50 Hz/60 Hz, 2000W max POWER CONSUMPTION STDB/IDLE/MAX < 1W/75W/2000W DIMENSIONS (WXHXD) 325 x 105 x 420 mm / 12.8 x 4.1 x 16.5" WEIGHT 13 kg / 28.7 lbRead More
