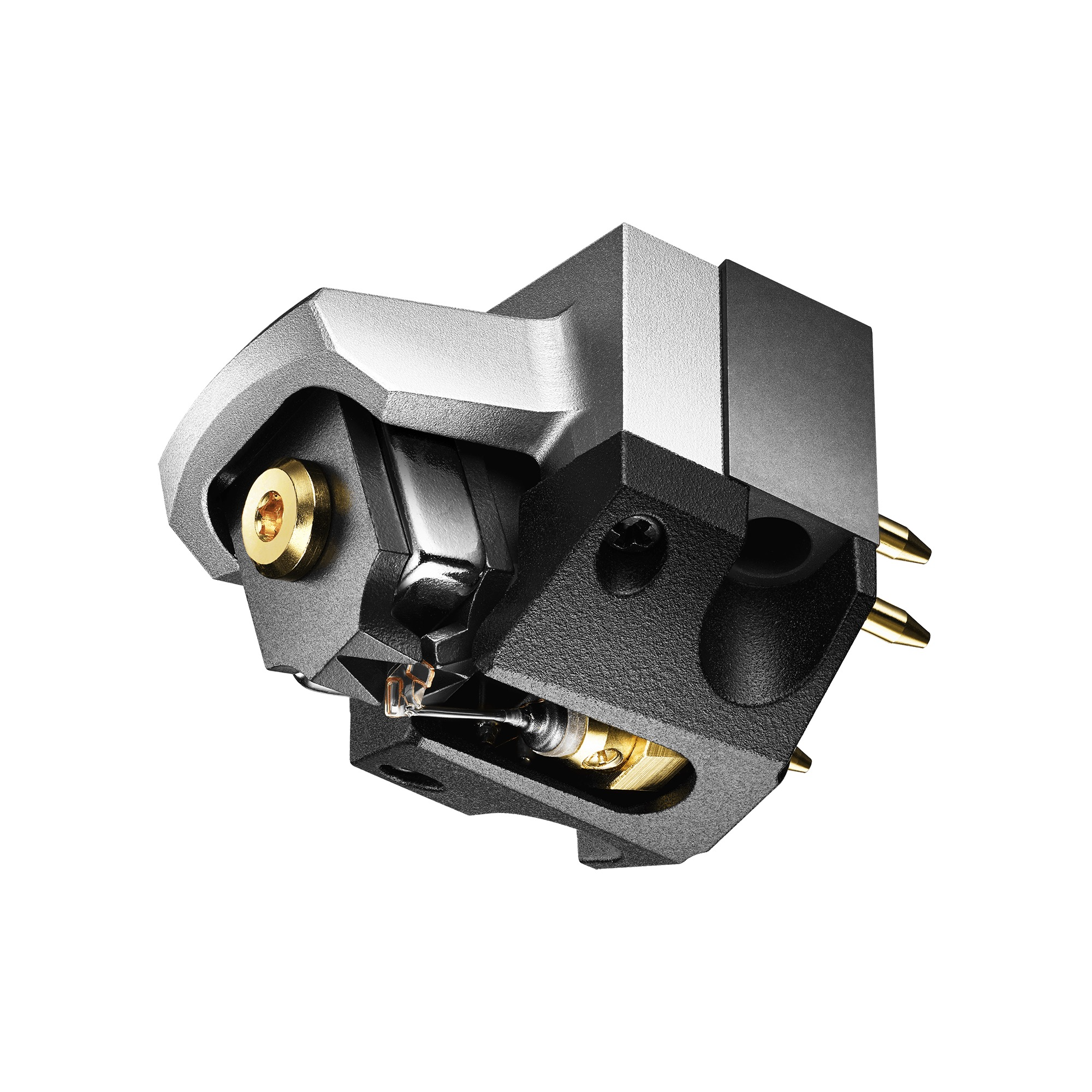

This next-generation cartridge takes the philosophy and design of the innovation AT-ART1000 to a new level, with a more refined direct power system for improved efficiency and enhanced bass reproduction. Developed and manufactured in Japan, utilizing cutting-edge materials and design elements, the AT-ART1000X delivers the ultimate listening experience to audiophiles around the world.Read More
Innovative direct power system delivers unsurpassed transient response, resulting in reproduction of even the most subtle sonic details Newly designed rectangular coils improve the cartridge’s efficiency and extend low-frequency output Threaded mounting holes make it easy to install cartridge to headshell or integrated tonearm Special line contact stylus and solid boron cantilever with a 0.26 mm diameter ensure an extremely accurate reading of the record groove Non-magnetic core coils provide exquisite, full-dimensional audio reproduction Magnetic circuit’s titanium base works in combination with the cartridge’s hard plastic cover and aluminum housing to disperse unwanted resonance PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer Special coating protects the magnetic circuit from corrosion for stable performance throughout the life of the cartridge Developed and manufactured in Japan by skilled experts
Specifications Cartridge & Stylus Frequency Response 15 - 30,000 Hz Channel Separation 30 dB (1 kHz) Vertical Tracking Angle 19° Vertical Tracking Force Refer to “Tracking force information” included in the box. Recommended Load Impedance ≥ 30 ohms (when head amplifier connected) Coil Impedance 3.5 ohms (1 kHz) DC Resistance 3.5 ohms Coil Inductance ≤ 1 μH (1 kHz) Output Voltage 0.22 mV (1 kHz, 5 cm/sec.) Output Channel Balance 0.5 dB (1 kHz) Stylus Shape Special line contact stylus Cantilever 0.26 mm (0.010") diameter solid boron Static Compliance 20 × 10–6 cm/dyne Dynamic Compliance 9 × 10–6 cm/dyne (100 Hz) Dimensions 17.3 mm (0.68") × 17.0 mm (0.67") × 25.5 mm (1.0") (H × W × D) Accessories Included ・Case (wooden box) ・Non-magnetic screwdriver ・Washer × 2 ・Protector ・Cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm × 2, 12.0 mm × 2) ・Brush Threaded Hole M2.6 × 2 Stylus Curvature Radius 1.5 × 0.28 mil Type Direct power system, non-magnetic core coil (MC) type Weight 11 g (0.39 oz)
