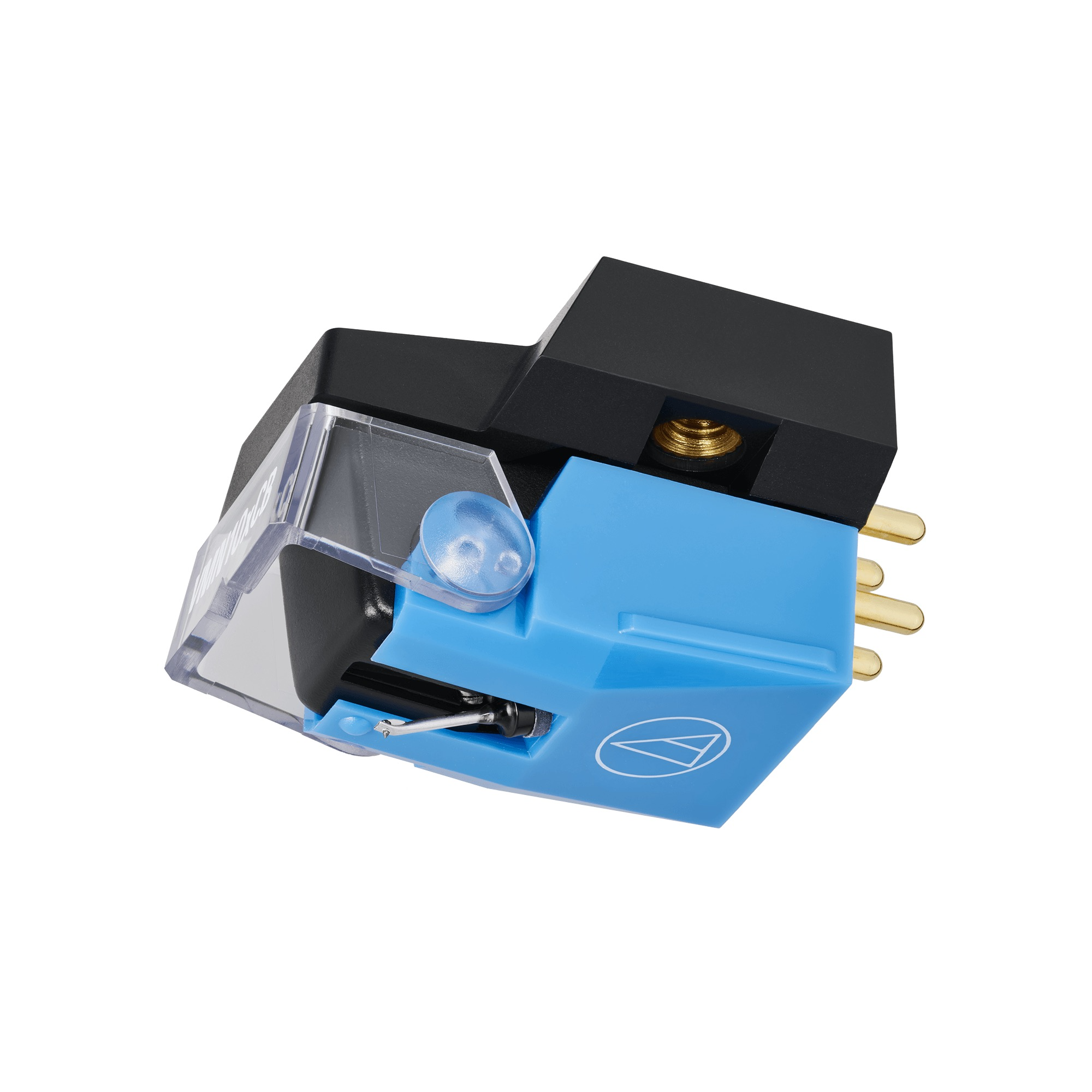

The AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail.Like all our MM cartridges, this updated design closely mirrors the cutter head used to make the vinyl master. It utilizes two magnets, positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. But the new VMx series also introduces material and design changes to further refine the sound, offering responsive playback that is especially sensitive to the dynamism of musical expression. Each AT-VMx cartridge body has threaded inserts, enabling it to be mounted to a headshell with just two screws – no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the stylus’s position when lowering it onto a record.Read More
Since all AT-VMx series cartridges share the same body design and have a removable stylus, you can use almost any AT-VMNx replacement stylus* with any VMx cartridge for easy experimentatuioin with sound characteristics. Specifications Cartridge & Stylus Frequency Response 20 to 20,000 Hz Channel Separation 24 dB (1 kHz) Vertical Tracking Angle 20° Vertical Tracking Force 1.8 to 2.2 g (2.0 g standard) Recommended Load Impedance 47 k ohms Coil Impedance 3.2 k ohms (1 kHz) DC Resistance 750 ohms Coil Inductance 480 mH (1 kHz) Output Voltage 5.0 mV (1 kHz, 5 cm/sec.) Output Balance 1.5 dB (1 kHz) Cantilever Aluminum pipe Static Compliance 23 × 10-6 cm/dyne Dynamic Compliance 7 × 10-6 cm/dyne (100 Hz) Dimensions 28.0 mm (1.1”) × 18.3 mm (0.72”) × 17.6 mm (0.69”) (H × W × D) Accessories Included Cartridge installation screws** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), Washer × 2 Threaded Hole M2.6 × 2 Recommended Load Capacitance 150 to 250 pF Replacement Stylus AT-VMN10xCB (sold separately)* Stylus Curvature Radius 0.6 mil Type VM Weight 7.2 g (0.25 oz)
