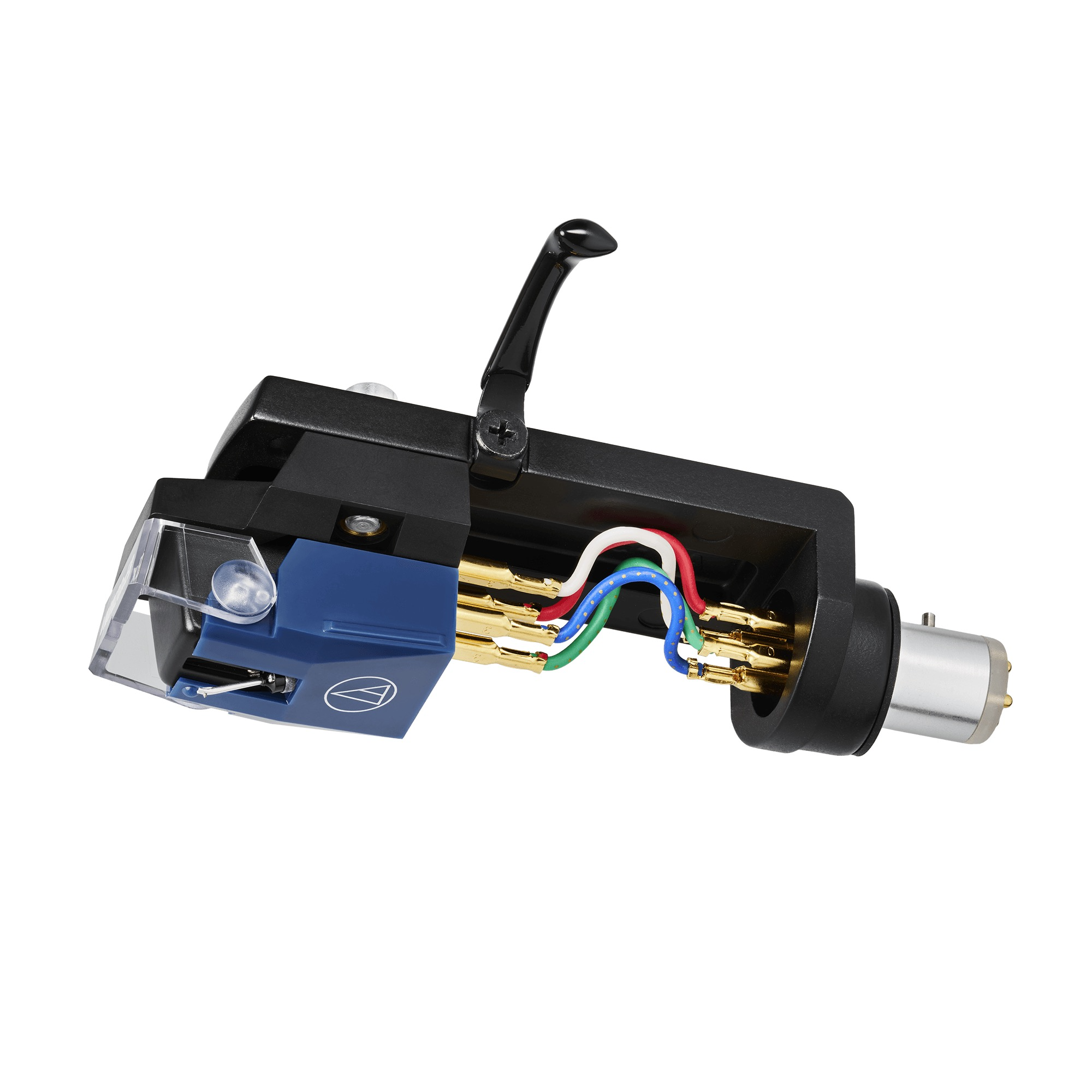

The AT-VM520xEB/H combo kit includes the AT-VM520xEB elliptical bonded dual moving magnet cartridge premounted on the AT-LT10 universal 1/2"-mount headshell. The AT-VM520xEB is part of the updated AT-VMx series, which introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.Read More
Features AT-VM520xEB Dual Moving Magnet Cartridge AT-VMx dual moving magnet cartridge with 0.3 x 0.7 mil elliptical bonded stylus 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with accuracy for outstanding audio reproduction Paratoroidal coils improve generating efficiency for enhanced channel separation, channel balance, and transient response PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response Center shield plate between the left and right channels reduces crosstalk for clear stereo sound Threaded inserts make cartridge easier to mount, especially to integrated tonearms V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record Durable low-resonance polymer housing Aluminum cantilever Compatible with any turntable headshell that accepts 1/2" cartridges Compatible with most AT-VMx series replacement styli,* offering a wide choice of options for every budget and application *Excludes mono models AT-LT10 Universal Headshell Universal ½"-mount headshell for 4-pin turntable cartridges with or without threaded inserts Ultra-lightweight aluminum die-cast body keeps vibration to the bare minimum Elongated through holes enable precise cartridge positioning and overhang adjustment OFC (oxygen-free copper) lead wires for exceptional sound quality Slip-resistant finger lift allows stylus to be placed precisely on the record Includes mounting screws
Specifications Cartridge & Stylus Frequency Response 20 to 20,000 Hz Channel Separation 24 dB (1 kHz) Vertical Tracking Angle 20° Tracking Force 1.8 to 2.2 g (2.0 g standard) Stylus Construction Elliptical bonded Recommended Load Impedance 47 k ohms Coil Impedance 3.2 k ohms (1 kHz) DC Resistance 750 ohms Coil Inductance 480 mH (1 kHz) Output Voltage 5.0 mV (1 kHz, 5 cm/sec.) Output Balance 1.5 dB (1 kHz) Cantilever Aluminum pipe Static Compliance 23 × 10-6 cm/dyne Dynamic Compliance 7 × 10-6 cm/dyne (100 Hz) Dimensions 67.4 mm (2.7”) × 18.5 mm (0.73”) × 21.5 mm (0.85”) (H × W × D) Recommended Load Capacitance 150 to 250 pF Replacement Stylus AT-VMN20xEB* (sold separately) Stylus Curvature Radius 0.3 × 0.7 mil Type VM Weight 18.3 g (0.65 oz)
