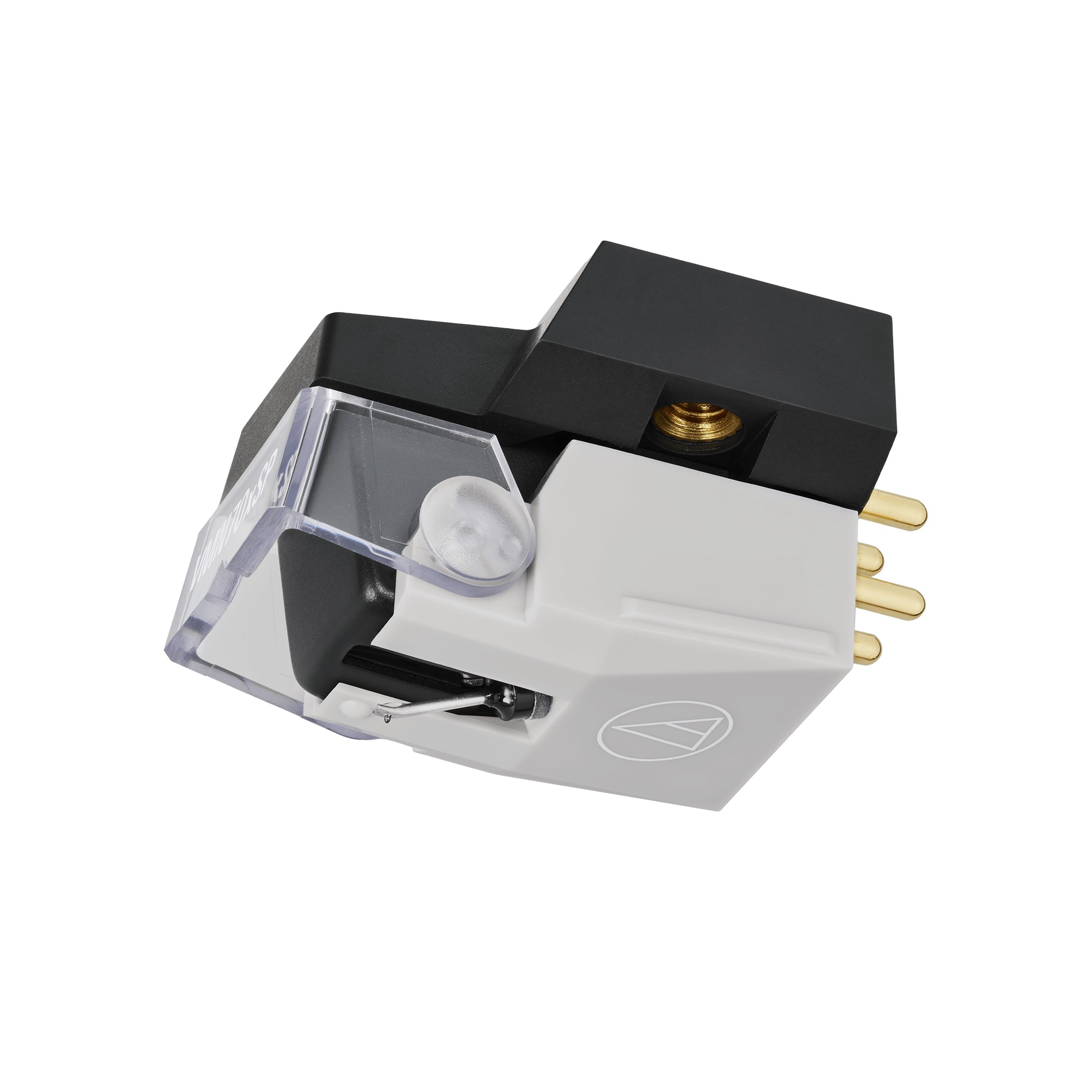

he AT-VMx series brings new warmth and realism to Audio-Technica’s premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that’s alive with musical detail. This latest renewal of the line introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.The AT-VM670xSP cartridge is designed for playing 78 RPM monaural records. The dual magnets in this cartridge are internally connected to reduce record noise and obtain a highly focused “center” sound image that stereo cartridges can’t provide.Read More
Features AT-VMx dual moving magnet cartridge with 3.0 mil conical bonded stylus 3.0 mil conical bonded stylus designed for playing 78 RPM records Paratoroidal coils improve generating efficiency for enhanced transient response PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response Threaded inserts make cartridge easier to mount, especially to integrated tonearms V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record Durable low-resonance polymer housing Aluminum cantilever Mono body terminating left and right channels reduces surface noise Compatible with any turntable headshell that accepts 1/2" cartridges
Specifications Cartridge & Stylus Frequency Response 20 to 20,000 Hz Vertical Tracking Angle 20° Tracking Force 4.5 to 5.5 g (5.0 g standard) Stylus Construction Conical bonded (3.0 mil) Recommended Load Impedance 47 k ohms Coil Impedance 1.6 k ohms (1 kHz) DC Resistance 375 ohms Coil Inductance 240 mH (1 kHz) Output Voltage 4.7 mV (1 kHz, 5 cm/sec.) Horizontal/Vertical Output Ratio 20 dB (1 kHz) Cantilever Aluminum pipe Static Compliance 23 × 10-6 cm/dyne Dimensions 28.0 mm (1.1”) × 18.3 mm (0.72”) × 17.6 mm (0.69”) (H × W × D) Accessories Included Cartridge installation screws** (M2.6) (10.0 mm (0.39”) × 2, 8.0 mm (0.31”) × 2, 5.0 mm (0.20”) × 2), washer × 2 Threaded Hole M2.6 × 2 Recommended Load Capacitance 150 to 250 pF Replacement Stylus AT-VMN70xSP* (sold separately) Stylus Curvature Radius 3.0 mil Type VM Weight 7.2 g (0.25 oz)
