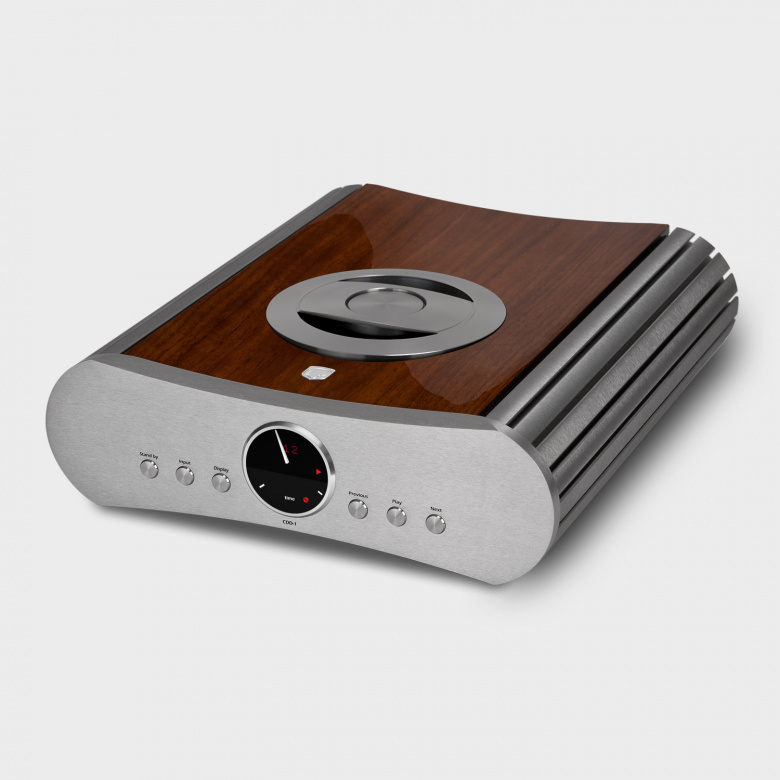

CD

At a Glance

OUTPUT LEVEL 2.2 V unbalanced, 4.4 V balanced OUTPUT IMPEDANCE 100 O unbalanced, 200 O balanced FREQUENCY RESPONSE 20 Hz – 20 kHz ± 0.2 dB THD+N 0,002 % SIGNAL TO NOISE RATIO 120 dB DIGITAL INPUTS Up to 24 bits @ 192 kHz (S/PDIF and USB input) DRIVE Compatible with red book CD and CD-R DIGITAL OUTPUT 75 O coaxial S/PDIF CONNECTORS BALANCED ANALOGUE OUTPUTS 1 pair gold plated XLR Neutrik UNBALANCED ANALOGUE OUTPUTS 1 pair of gold plated RCA DIGITAL OUTPUT 1 pc. gold-plated RCA DIGITAL INPUTS 1 pc. gold-plated RCA and 1 pc. USB type B SIZE AND WEIGHT POWER REQUIREMENTS 115 VAC/230 VAC, 50 Hz/60 Hz FUSE 20 mm sand-filled, 630 mA @ 115 V, 315 mA @ 230 V POWER CONSUMPTION STDB/IDLE/MAX < 1W/30W/60W DIMENSIONS (WXHXD) 325 x 105 x 375 mm / 12.8 x 4.1 x 14.8" WEIGHT 10 kg / 22 lbRead More
