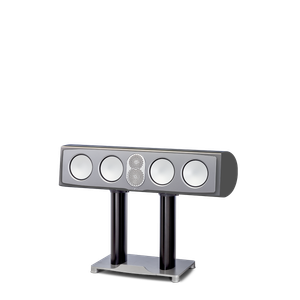

Center Speaker

At a Glance

DESIGN 6-driver, 3 way center channel bass reflex CROSSOVER 3rd order electro-acoustic at 2.5kHz (tweeter/mid); 3rd order 700Hz FREQUENCY RESPONSE ON-AXIS +/- 2dB from 43Hz - 45kHz HIGH FREQUENCY DRIVER 1" (25mm) Truextent® Beryllium dome, ferro-fluid damped / cooled, Perforated Phase-Aligning (PPA™) Tweeter Lens, Finite Element Analysis (FEA) optimized pole piece assembly MIDRANGE FREQUENCY DRIVER 4" (100mm) Truextent® Beryllium driver, Perforated Phase-Aligning (PPA™) Lens, SHOCK-MOUNT™ Isolation Mounting System, 1" high-temp voice coil LOW FREQUENCY EXTENSION 24Hz LOW FREQUENCY DRIVER Four 7" (178mm) high-excursion X-PAL™ drivers, overmolded Active Ridge Technology (ART™) surrounds, SHOCK-MOUNT™ Isolation Mounting System, 1.5" high-temp tandem voice coil SENSITIVITY ROOM / ANECHOIC 93 dB / 90 dB FREQUENCY RESPONSE 30° OFF-AXIS +/- 2dB from 43Hz - 20kHz SUITABLE AMPLIFIER POWER RANGE 15 - 500 watts MAXIMUM INPUT POWER 250 Watts IMPEDANCE Compatible with 8 ohms DIMENSIONS HXWXD 10.25" × 36" × 16.375" (26.3cm × 91.4cm × 41.5cm) WEIGHT 84 lbs. (38 kg) FINISHES High Gloss: Vanta Black, Harmony White Metallic Gloss: Aria Blue, Sonic SilverRead More
