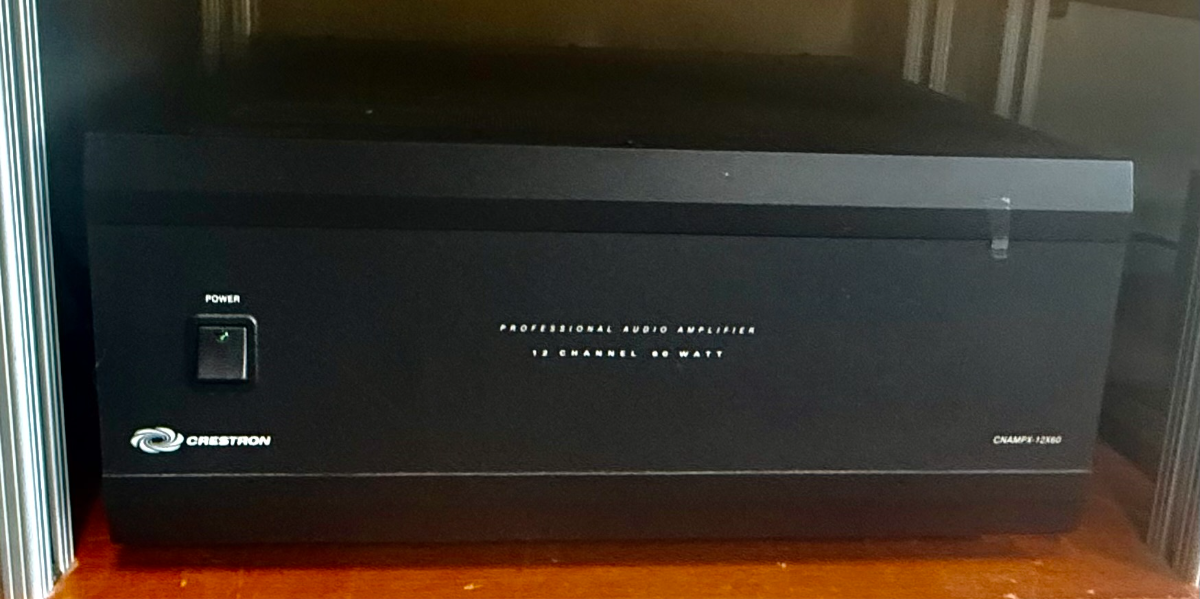

The CNAMPX-12X60 provides 12 channels of world-class audio amplification for the distribution of speaker-level audio to up to 6 stereo room zones. The CNAMPX-12X60 delivers a robust 60 watts per channel into 8 ohms, and 90 watts per channel into 4 ohms. Through the use of the optional CNXBRMO bridging interface, up to eight of the CNAMPX-12X60's twelve outputs may be bridged to produce 220 watts per channel into 8 ohms.Read More
Audio Typical of 6 Stereo Room Outputs: Output Power 20Hz to 20kHz, all outputs driven at rated THD: 60 watts per channel at 8 ohms 90 watts per channel at 4 ohms 220 watts at 8 ohms bridged (channels 1-4 and 9-12 only; requires CNXBRMO, sold separately) Power Bandwidth 3Hz to 50kHz, +0/-3dB Frequency Response 20Hz to 20kHz, +0/-0.1dB at 1 watt, 8 ohms Total Harmonic Distortion (THD) ≤0.03% at full power IHF I.M. Distortion ≤0.01% SMPTE I.M. Distortion ≤0.03% Dynamic Headroom ≥2dB S/N Ratio >110dB A-weighted Gain 28dB Damping Factor >400 Channel Separation >100dB, 20Hz to 20kHz
Connectors ROOM INPUTS 1 – 6 (12) RCA female comprising (6) unbalanced stereo line-level audio inputs; Input Impedance: 28k ohms; Connect to room outputs of CNX-PAD8A or CNX-BIPAD8 ROOM OUTPUTS 1 – 6 (12) Dual 5-way binding posts comprising (6) stereo speaker-level audio outputs; Output Power: 60 Watts/Ch. @ 8 ohms, 90 Watts/Ch. @ 4 ohms G 6-32 screw, chassis ground lug NET (1) 4-pin 5mm detachable terminal block; Cresnet slave port, connects to Cresnet control network 120V AC 60Hz (1) IEC male and main fuse holder; IEC: Mates with removable power cord (included); Fuse: 3AG, 12 Amps, 250 Volts, fast-acting Dimensions HWD 7.7" x 17" x 17.4", Weight 81.4 lbs.
