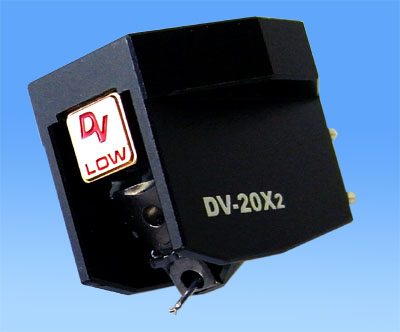

DV-20X has a solid aluminum alloy body and a rigid magnet construction similar to XX-2MKII. The cantilever is a 6mm length of hard aluminum pipe with a Micro-Ridge stylus. The magnetic flux damping and softened magnetism along with powerful neodymium magnets gives the 20X2H a healthy 2.8 mV output - suitable for most MM inputs. The 20X2L has an output of 0.3 mV ideal for most MC phono stages.Both high and low versions of their 20X2 are available ensure for the optimum end result. The high output model is well suited to valve preamplifiers or electronics that only offer MM inputs whilst the low output version offers superb performance when combined with dedicated moving coil inputs.Read More
Specifications Type High/Low output moving coil cartridge with flux damper and softened magnetism Output Voltage 2.8mV / 0.3mV (at 1KHz, 5cm/sec.) Channel Separation 25 dB (at 1KHz) Channel balance 1.0 dB (at 1KHz) Frequency response 20 - 20,000Hz (± 1dB) Compliance 12 mm/N Tracking force 1.8 - 2.2 g Impedance 150 ohms / 5 ohms Recommended load impedance > 1,000 ohms / > 30 ohms Cantilever 6mm length, hard aluminium pipe Stylus tip Micro Ridge Nude diamond Weight 9.2 g
