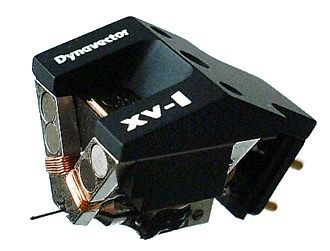

The XV-1s is the latest evolution of Dynavector design and features the advanced multi magnet design that stabilizes the magnetic flux density between the front yoke and the equalizer component, around the air gap.The XV-1s also features a revolutionary square shaped front aperture with a matching square shaped armature this enables the moving coil wound armature to move in an equalized and stable magnetic flux.Although slightly smaller in dimension the front yoke aperture is also square shape to match the armature along with a square shaped counterbore to the equalizer component part.front yoke of XV-1s MC Cartridge square shaped counterbore of XV-1s MC CartridgeThe material used to stabilize the magnets is African ebony wood. It contributes to the best balance to the sound character.Other features6mm length 0.3 mm dia. solid boron is used.30 micron PCOCC wiring coil is used.6 ohms impedance is suitable with most phone stages or step -up transformers.New stylus guard is now available.Read More
Specifications Type Low output moving coil cartridge with multi Alnico magnets and the Flux damper Output Voltage 0.3mV (at 1KHz, 5cm/sec.) Channel Separation 30 dB (at 1KHz) Channel balance 1.0 dB (at 1KHz) Frequency response 20 - 20,000Hz (± 1dB) Compliance 10 mm/N Tracking force 1.8 - 2.2 g Impedance R=6 ohms, L=18 micro Henry Recommended load impedance > 30 ohms Cantilever 6mm length 0.3 mm dia. solid boron with a special armaturer Stylus tip PF Line contact shape, stylus radius: 7 x 30 micron Weight 12.6 g
