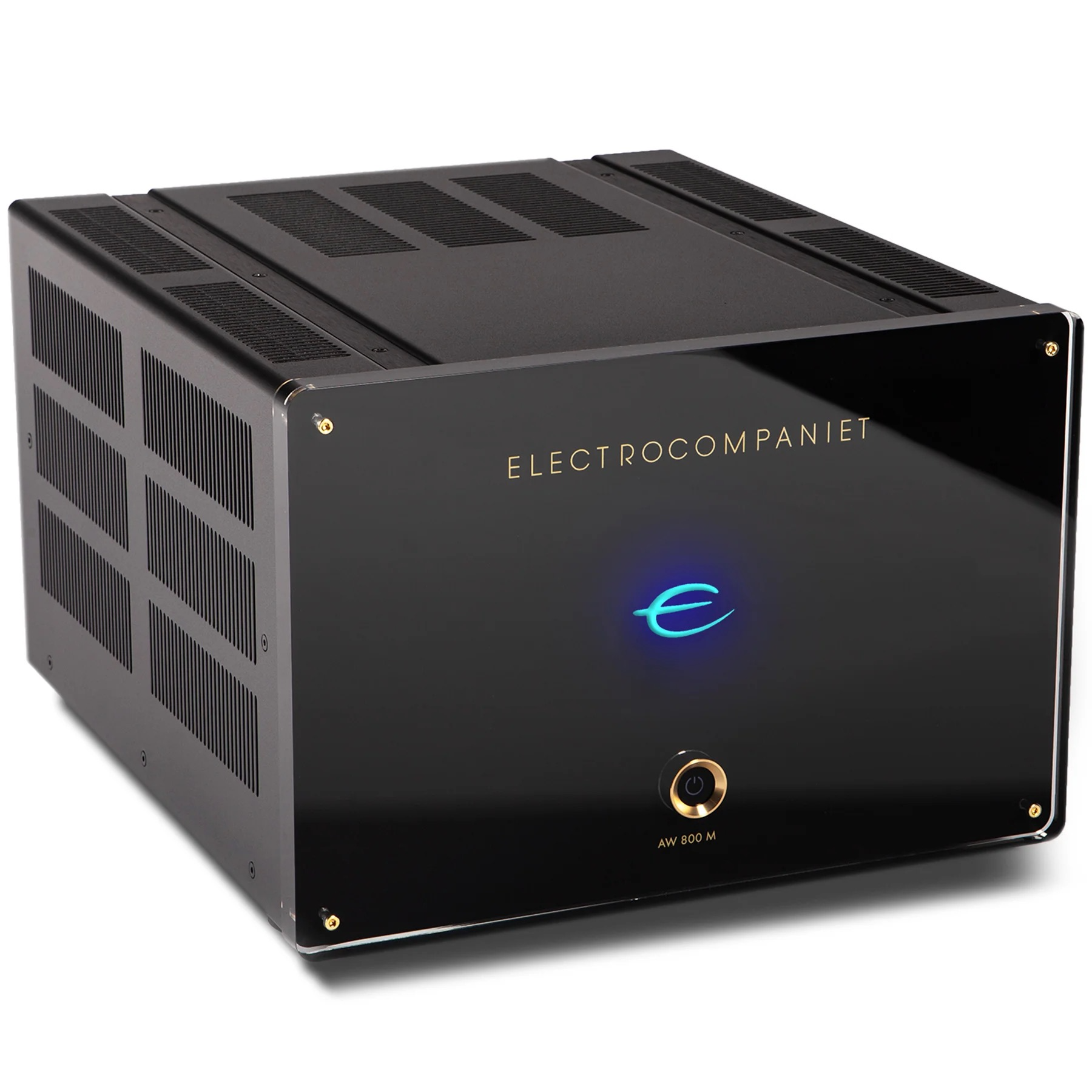

The AW 800 M is Electrocompaniet’s brand-new flagship power amplifier. It replaces the legendary AW 600 NEMO as our most powerful monoblock power amplifier. The amplifier showcases an updated, yet unmistakable and distinctive Electrocompaniet design that is a perfect match for all current and legacy Electrocompaniet products. 800W Monoblock / 300W StereoRead More
PRICE PER PAIR OF MONOBLOCKS
TECHNICAL SPECIFICATIONS Input impedance: 330 kΩ Frequency resp. (in. filter active):0.5 – 220 kHz Frequency resp. (in. filter dis.): 0.5 – 1.1 MHz Voltage gain (mono, bal. input): 35 dB (x56) Voltage gain (stereo, bal. input): 29 dB (x28) Input-referred noise (20-20kHz): < 2 μV SNR (ref. 1W/8Ω load, 20-20 kHz): 95 dB SNR (ref. full power out, 20-20 kHz): 122 dB Slew-rate (input filter disabled): 270 V/μs DC output voltage: < 5 mV THD+N: 0.0006 % IMD: 0.001 % Damping factor (8Ω load): > 1000 Power consumption standby: < 0.5W Protection: DC, overload, temperature
RATED OUTPUT POWER STEREO: 8Ω load: 2 x 300 W 4Ω load: 2 x 600 W 2Ω load: 2 x 1000 W
RATED OUTPUT POWER MONO: 8Ω load: 800 W 4Ω load: 1500 W 2Ω load: 2200 W
WEIGHT & DIMENSIONS: Weight: 55 kg – 122 lbs Width: 406 mm – 15.98 inches Depth: 488 mm – 19.21 inches Height: 292 mm – 11.49 inches
