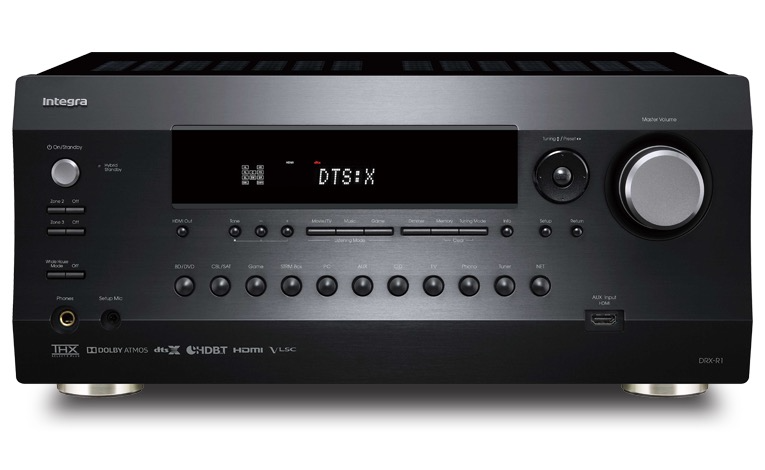

Integra DRX-R1 11.2 A/V Reciever Black

Product Overview

Integra DRX-R1 11.2 A/V Reciever Black

Specifications Amplifier Section Power Output: (8 Ω, 20 Hz-20 kHz, FTC) 140W / Channel (8 Ω) Dynamic Power: 320W / Channel (3 Ω) 270W / Channel (4 Ω) 160W / Channel (8 Ω) THD: (Total Harmonic Distortion + Noise) 0.04% (1 kHz, 100W) Input Sensitivity and Impedance: 200 mV / 82 k-Ω (LINE) 3.5 mV / 47 k-Ω (Phono MM) Rated RCA Output Level and Impedance: 1 V / 330 Ω (Pre Out, Subwoofer Pre Out) 200 mV / 1.2 k-Ω (Zone Out) 2.0 V / 1.2 k-Ω (Zone Pre Out) Phono Overload: 70 mV (MM 1 kHz, 0.5%) Frequency Response: 5 Hz - 100 kHz / +1 dB-3 dB (Direct Mode) Tone Control: ±10dB, 100 Hz (Bass) ±10dB, 10 kHz (Treble) Signal-to-Noise Ratio: 108 dB (Line, IHF-A) 90 dB (Phono) Speaker Impedance: 4 Ω - 16 Ω Channels: 11.2 Zones: 3 Processing Dolby Atmos and Dolby Surround: Yes Dolby TrueHD: Yes DTS:X and DTS Neural:X: Yes DTS-HD Master Audio: Yes THX Processing Modes & Loudness Plus: Yes VLSC for Noise Free Signal Path All Channels AccuEQ Automatic Room Calibration Advanced (Fine Tuned) w/AccuReflex: Yes GAME Surround Modes: Rock, Action, Sports, Role Play Advanced Music Optimizer to Enhance Compressed Audio Files: Yes Standing Wave EQ: User Defined (x3) Premium Quality Digital-to-Analog Conversion: 384k / 32-bit AKM4490 Differential DAC (Front L/R) 768k / 32-bit AKM4458 Differential DAC: x2, Surround Channels 32-Bit DSP Chip for Advanced Processing Analog Devices: SHARC (x3) Ultra-Low-Jitter Circuitry to Improve Audio: Yes Adjustable Crossover by Channel Pair: 40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz Accurate Speaker Distance Setting: 0.1 - foot A/V Sync Delay (by Source): -100 to +500 ms Video Section Input Sensitivity / Output Level and Impedance: 1.0 Vp-p / 75 Ω (Component Y) 0.7 Vp-p / 75 Ω (Component Pb/Cb, Pr/Cr) Tuner Section Tuning Frequency Range: FM 87.5 MHz - 107.9 MHz AM 530 kHz - 1,710 kHz FM / AM Preset Memory: 40 Stations General Power Supply: AC 120 V, 60 Hz Power Consumption: 340 W Stand-by Power Consumption: 0.15 W Dimensions: 17 1/8" W x 7 3/4" H x 17 9/16" D Weight: 42.9 lbs.
