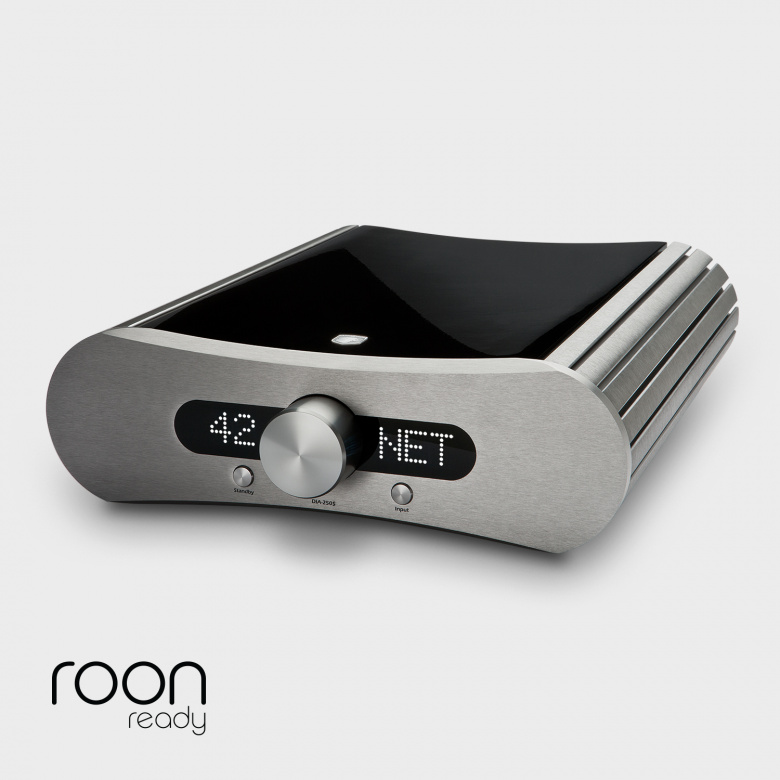

Integrated Amp

At a Glance

OUTPUT POWER 2x 250 W / 8 O - 2x 500 W / 4 OFREQUENCY RESPONSE 20 Hz-20 kHz - 0.5 dB, and 2 Hz-70 kHz - 3 dBTOTAL HARMONIC DISTORTION < 0,01% at rated powerSIGNAL TO NOISE RATIO > 110 dBLINE OUT MAXIMUM LEVEL 13V balanced, 6,5V unbalancedTOTAL HARMONIC DISTORTION < 0,001% pre outINPUT IMPEDANCE 20 kO RCA or 40 kO BalancedLINE OUTPUT IMPEDANCE 75 OVOLTAGE GAIN 26 dB (+10 db headroom)RECOMMENDED SPEAKER LOAD 4 -16 O CONNECTORS BALANCED ANALOGUE INPUTS 1 pair gold plated XLR NeutrikUNBALANCED ANALOGUE INPUTS 2 pairs of gold plated RCA StereoDIGITAL INPUTS 1 pc USB type B, 1 pc Toslink, 1 pc RCA, 1 pc Ethernet, 1 pc WiFi, 1 pc aptX HD Bluetooth 4.2BALANCED ANALOGUE OUTPUTS 1 pair gold plated XLR NeutrikUNBALANCED ANALOGUE OUTPUTS 1 pair of gold plated RCA StereoSPEAKER OUTPUT 2 pairs of gold plated safety bananaTRIGGER, 12 V 1 pc mini jack SIZE AND WEIGHT POWER REQUIREMENTS 115 VAC/230 VAC, 50 Hz/60 Hz, 1000W maxPOWER CONSUMPTION STDB/IDLE/MAX < 1W/23W/1000WDIMENSIONS (WXHXD) 325 x 105 x 420 mm / 12.8 x 4.1 x 16.5"WEIGHT 10 kg / 22 lbRead More
