Product Overview

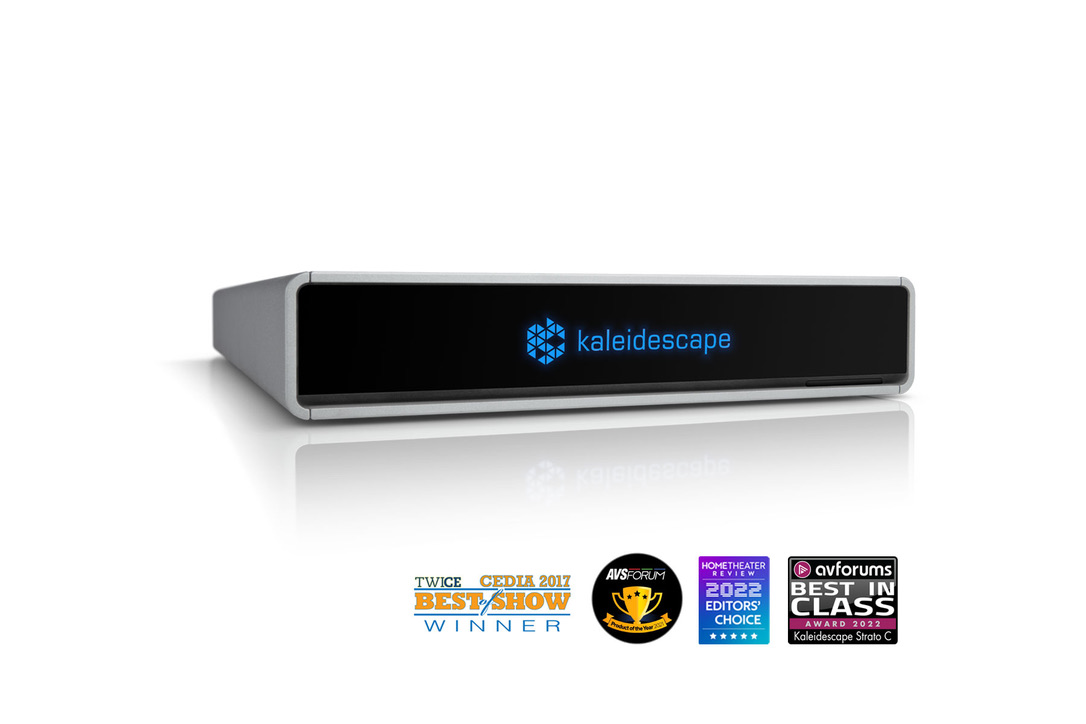

Kaleidescape Strato C 4K Movie Player
DIMENSIONS • 7.87in × 1.52in × 10.0in (W × H × D) (20.0cm × 3.9cm × 25.4cm) WEIGHT • 4.2lb (1.91kg) POWER • Max consumption: 20W • Typical: 17W • High power standby: 12W • Low power standby: 0.50W • External power adapter: 100- 240VAC to 12VDC @ 5A, 60W with detachable line cord NETWORK • Gigabit Ethernet (1000 Base-T) OTHER CONNECTION • USB 3.0 (reserved) CONTROL • Ethernet control from Crestron, AMX, Control4, Savant, the Kaleidescape App for iPad, and other apps & control systems • Front-panel IR receiver window • IR input (1/8in mini plug) ENVIRONMENT • Operating temperature: 41 to 95°F (5 to 35°C) • Storage temperature: -4 to 140°F (-20 to 60°C) • Relative humidity: 20 to 80% (operation) 5 to 90% (storage) • Maximum operating altitude: 10,000ft (3,048m) • Heat output: 69 BTU/hr (20W) max • Airflow: 3.5 CFM (6 m3/hr) max
VENTILATION • Minimum 1in (2.5cm) space at the front • Minimum 2in (5cm) space at the rear MOUNTS (sold separately) • Rack shelf with faceplates is available for mounting 1 or 2 (centered or side-by-side) Strato C players in a 19in rack, 1U space • Wall mount available for mounting behind TV displays CERTIFICATIONS • CSA 62368-1 • CSA 60950-1 • IEC 62368-1 • IEC 60950-1 • FCC CLASS B •CE • RoHS Compliant VIDEO OUTPUT • HDMI 2.0a (labelled “VIDEO”) • HDCP 2.2 copy protection VIDEO DISPLAY FORMATS • Resolutions: 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p • Chroma: 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12- bit at 2160p50/60 only • Color spaces: BT.2020, BT.709, BT.601 • Aspect ratios: 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable • HDR: HDMI 2.0a with support for SMPTE ST 2084 EOTF, SMPTE ST 2086 metadata
AUDIO OUTPUTS • HDMI 2.0a (combined with video on the VIDEO connector) • HDMI 1.4 (audio-only on the DIGITAL AUDIO connector) • Digital (coaxial RCA and TOs-link connectors) AUDIO FORMATS • Dolby Atmos • Dolby TrueHD • Dolby Digital • DTS:X • DTS-HD Master Audio • DTS Digital Surround • PCM • MPEG audio STORAGE • No internal storage. Strato C accesses content stored on a Terra or Strato (with internal storage) when connected via network MEDIA • Kaleidescape movie store downloads, including high-bit-rate 4K Ultra HD movies in 10-bit color, with and without high dynamic range (HDR), and movies that precisely match the quality available on Blu-ray Disc and DVD • DVD, DVD-R, DVD-RW, DVD+R, DVD+RW (from Kaleidescape Disc Server) LIMITED WARRANTY • 5 years
