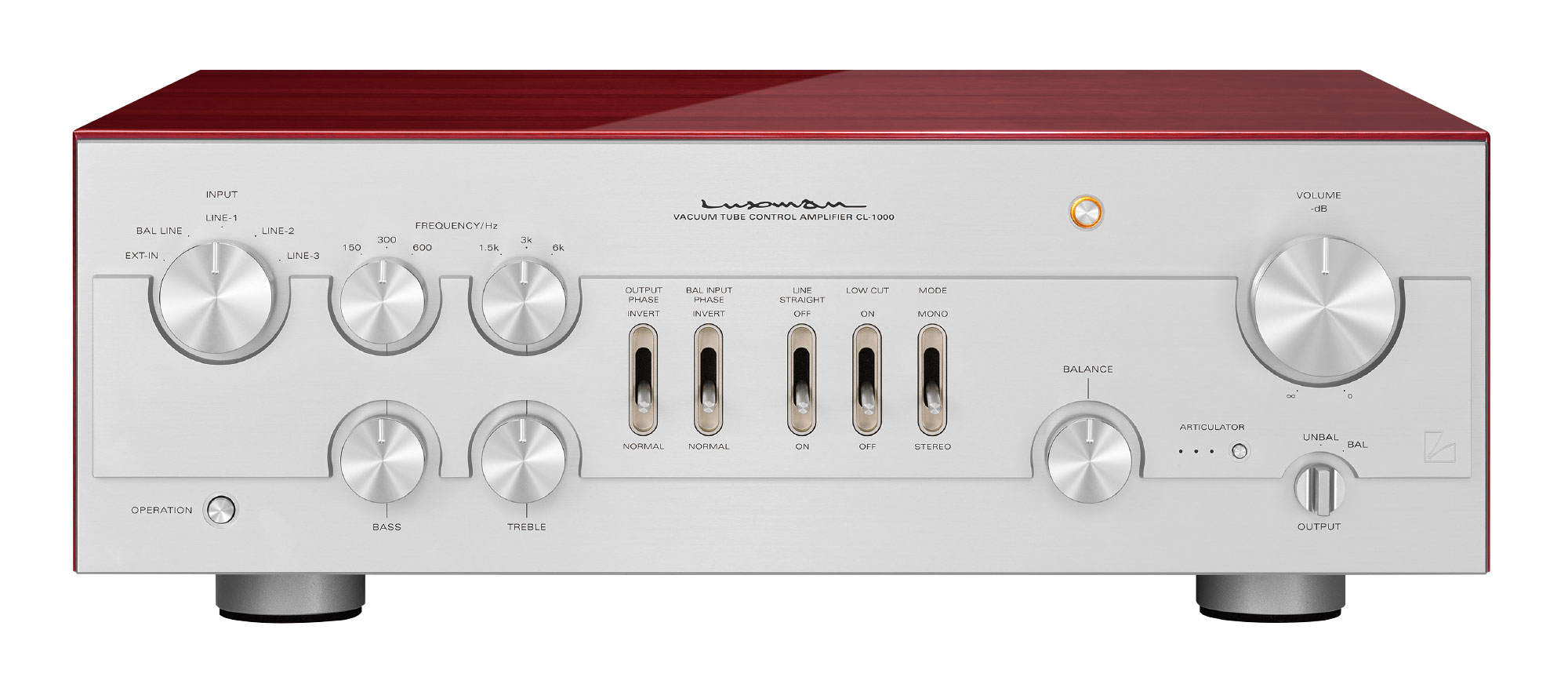

At LUXMAN, we don’t consider a technology “advanced” unless it advances your ability to delight in music. That principle reaches its highest expression in the CL-1000, our flagship vacuum tube control amplifier. Successor to the classic C-1000 released in 1975, the CL-1000 pairs beautifully with the acclaimed MQ-300 vacuum tube stereo power amplifier. Both reflect LUXMAN’s singular expertise in vacuum tube audio. In the 1960s, when the audio industry moved en masse into transistor amplifiers, LUXMAN recognized the ineffable beauty of the tube music reproduction. And we’ve continued to build tube components without interruption. While the CL-1000 salutes the past, it also embodies the best of today with a major step forward in sonic clarity: the transformer-assisted volume control we call LECUTA (Luxman Electronically Controlled Ultimate Transformer Attenuator). In addition, super permalloy core output transformers contribute to a vivid sound stage. Covered in natural walnut with a rosewood gloss finish, the cabinet lends a touch of warmth and refinement. All told, the CL-1000 brings advanced technology and musical refinement together in harmony.Read More
Input sensitivity LINE / BAL.LINE ： 180 mV / 1 V output, 1 kHz, load 50 kΩ EXT-IN (PHONO) MM 100 kΩ (38 dB) ： 2.2 mV / 1 V output, 1 kHz, load 50 kΩ MM 50 kΩ (38 dB) ： 2.2 mV / 1 V output, 1 kHz, load 50 kΩ MM 33 kΩ (38 dB) ： 2.2 mV / 1 V output, 1 kHz, load 50 kΩ MC-H 1 kΩ (57 dB) ： 0.26 mV / 1 V output, 1 kHz, load 50 kΩ MC-M 40 Ω (57 dB) ： 0.26 mV / 1 V output, 1 kHz, load 50 kΩ MC-L 10 Ω (66 dB) ： 87 μV / 1 V output, 1 kHz, load 50 kΩ Input impedance LINE ： 90 kΩ / 1 kHz BAL.LINE ： 70 kΩ / 1 kHz EXT-IN (PHONO) MM ： 100 kΩ, 50 kΩ, 33 kΩ MC ： 1 kΩ, 40 Ω, 10 Ω Output impedance LINE / BAL.LINE ： 1 kΩ / 1 kHz Frequency response LINE / BAL.LINE ： +0.3, -0 dB / 1 V output, 20 Hz to 20 kHz, load 50 kΩ EXT-IN (PHONO) ： ±0.3 dB / 1 V output, 20 Hz to 20 kHz, load 50 kΩ Total harmonic distortion LINE / BAL.LINE ： 0.016 % / 1 V output, 1 kHz, load 50 kΩ EXT-IN (PHONO) MM ： 0.3 % / 1 V output, 1 kHz, load 50 kΩ MC (H, M) ： 0.3 % / 1 V output, 1 kHz, load 50 kΩ MC (L) ： 0.5 % / 1 V output, 1 kHz, load 50 kΩ S/N ratio LINE / BAL.LINE ： 120 dB (IHF-A) / distortion 1%, 1 kHz, load 50 kΩ EXT-IN (PHONO) MM ： 108 dB (IHF-A) / distortion 1%, 1 kHz, load 50 kΩ MC (H, M) ： 92 dB (IHF-A) / distortion 1%, 1 kHz, load 50 kΩ MC (L) ： 83 dB (IHF-A) / distortion 1%, 1 kHz, load 50 kΩ Tone control Max. amount of change ： ±8 dB Bass turnover frequency ： 150 Hz, 300 Hz, 600 Hz Treble turnover frequency ： 1.5 kHz, 3 kHz, 6 kHz Low cut 30 Hz (-6 dB / oct.) Circuiting system 2-step amplification P-K NF type, tone control P-G NF type, phono equalizer NF type Vacuum tube used E88CC (manufactured by JJ Electronic / reliable tube) x 6 Power supply 230 V～(50 Hz)/115 V～ (60 Hz) Power consumption 52 W Dimensions 18.1(W) x 6.5(H) x 17.9 (D) inches Net weight 54 lbs Accessories Power cable
