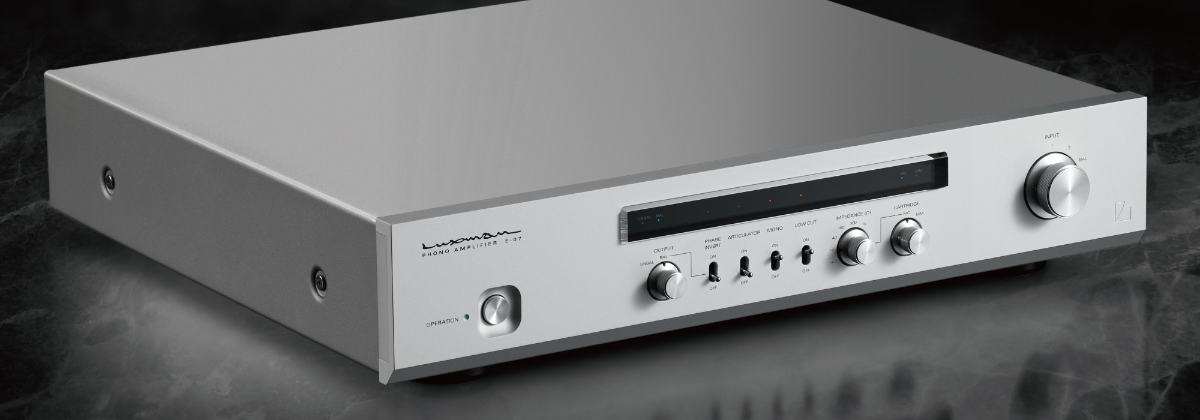

Compatible with various analog playback environments, including balanced connections for MC cartridgesThe E-07 features a slim chassis designed to match the width of LUXMAN’s separate amplifiers and integrated amplifiers, complemented by a blasted white finish front panel for design consistency. It incorporates the performance and diverse functions required for a modern phono equalizer amplifier, enhancing the enjoyment of deep analog playback. Our newly developed step-up transformer for MC cartridges utilizes a super permalloy core with high responsiveness to small signals. It comprises two independent units for each channel and Low/High gain, allowing for optimal transformer selection based on the chosen impedance group. Additionally, it supports balanced inputs that can receive differential signals from MC cartridges without loss of output energy, improving left-right stereo separation and image localization. The input options include one balanced pair (XLR) and two unbalanced pairs (RCA) terminals, enabling the construction of versatile analog playback environments through connection with various amplifier devices.Read More
Circuit configuration Non-feedback type phono equalizer (RIAA, first stage four parallel FET, unbalanced configuration) MC step-up transformer Super permalloy core x 4 (L/R channel, L/H impedance independent) : 0.3mV / 100Ω Input sensitivity MM 3.2mV, MC-H 0.37mV, MC-L 0.12mV Rated output / output impedance 250mV / Unbalanced 300Ω, Balanced 600Ω Load capacity MM 0 / 100 / 200 / 320pF Gain MM 38dB, MC-H 57dB, MC-L 66dB Maximum input MM 120mV, MC-H 15mV, MC-L 5mV RIAA response MM 20Hz to 20kHz (±0.1dB), MC 20Hz to 20kHz(±0.3dB) Total harmonic distortion 0.003% S/N ratio (IHF-A) MM 88dB, MC-H 81dB, MC-L 78dB Channel separation 80dB or more Power transformer OI type x 3 (L/R independent + Peripheral circuit) Insulator feet Density gradient Power supply 230V~(50Hz) / 115V~(60Hz) Power consumption 13W External dimensions 440(W) x 92(H) x 407(D) mm front side knob of 14mm and rear side terminal of 37mm included in depth Net weight 13.2kg (main unit) Accessories Power cable
