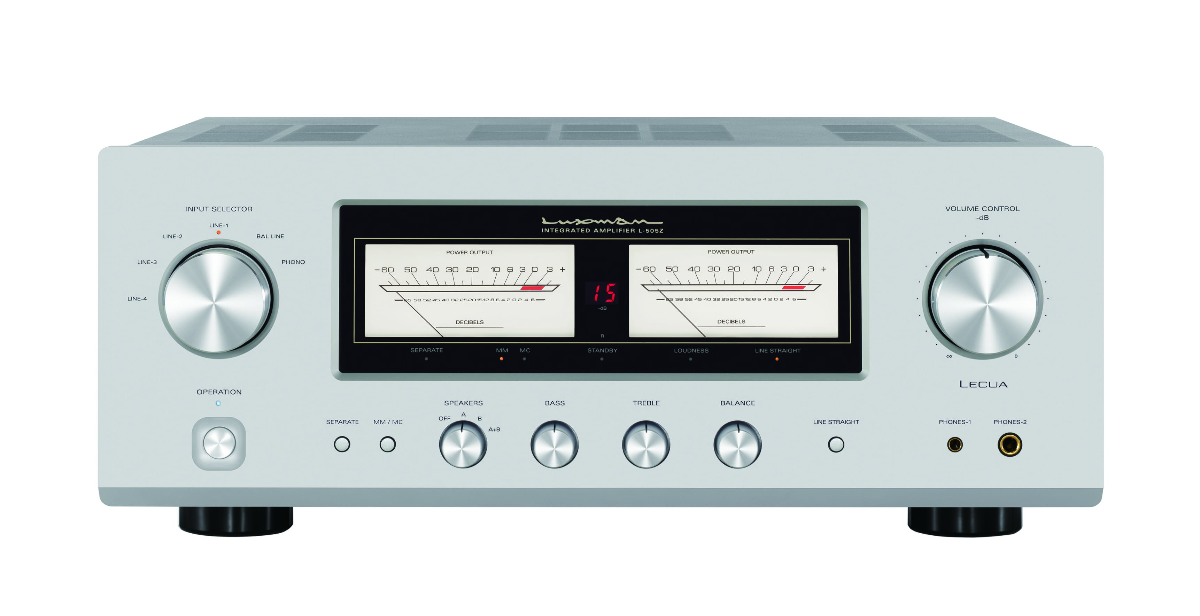

Luxman L-505Z Integrated Amplifier
At a Glance
Designed in honor of our L-505 amplifier, which continues to fascinate many audio enthusiasts as possibly our most familiar hi-fi model and equipped with our newly developed “LIFES” amplifier feedback engine, which is at the core of LUXMAN’s contemporary designs, we would like to complete the Z series circle with the L-505Z. While inheriting all the high-quality sound and design know-how from our higher-end models, it has achieved even more as a multifunctional integrated amplifier. Redefining the standard and now entering a new era, the L-505Z invites you into the world of exciting high-end audio.Read More
Available in Store Only
$5,995.00
Get to know this product.
Product Overview
Luxman L-505Z Integrated Amplifier
Rated output 100W + 100W (8Ω), 150W + 150W (4Ω) Input sensitivity/ input impedance PHONO (MM): 2.5mV/47kΩ PHONO (MC): 0.3mV/100Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/55kΩ MAIN IN: 1V/47kΩ Output voltage PRE OUT: 1V Frequency response PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (within -3dB) Total harmonic distortion 0.009% or less (8Ω, 1kHz) 0.09% or less (8Ω, 20Hz to 20kHz) S/N ratio (IHF-A) PHONO (MM): 87dB or more PHONO (MC): 70dB or more LINE: 104dB or more Volume adjustment LECUA Amplification feedback circuit LIFES 1.0 Output configuration Bipolar parallel push-pull Damping factor 200 Max. amount of tone control BASS: ±8dB at 100Hz TREBLE: ±8dB at 10kHz Power supply 230V~(50Hz) / 115V~(60Hz) Power consumption 330W 90W (under no signal), 0.5W (at standby) External dimensions 440(W) x 178(H) x 454(D) mm front side knob of 20mm and rear side terminal of 27mm included in depth Net weight 22.5kg (main unit) Accessories Remote control (RA-17A) Power cable Speaker terminal
