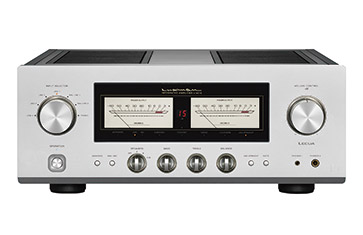

Luxman L-507Z Integrated Amplifier

Model #: Luxman L-507Z
1120672
Luxman
At a Glance
Our latest amplification feedback engine brings music to life with LIFES Version 1.0Luxman will celebrate our 100th anniversary in 2025 and we are proud to announce the successor to our ODNF* feedback circuitry, which has contributed to the audio quality of our amplifier products since 1999. We have developed a new amplifier feedback circuit, LIFES*, which has acquired realistic, fresh and rich musicality and overwhelming audio performance. LIFES is based on the technical concept of our epoch-making ODNF circuit and realizes excellent, dynamic characteristics without feeding back any of the original audio input signal to the main amplifier, achieving a remarkably natural sound quality, almost if it were a non-feedback equipped circuit. The design has been conceived and expanded upon from first principles using simulation technology and painstaking research. By repeatedly auditioning, rigorously scrutinizing and combining specially selected components, we have achieved supreme performance characteristics and a level of quality suitable for use in Luxman’s next-generation products. In producing LIFES Version 1.0, by carefully reimagining the entire circuit, we succeeded in reducing the number of paralleled elements while improving performance. The distortion in the amplification stage has been reduced to less than half of our previous system. The output stage features a 3-stage Darlington triple-paralleled push-pull configuration and achieves a class AB power output of 110W+110W (8Ω) and 210W+210W (4Ω). The high output power, comparable to that of a separate power amplifier, effortlessly realizes a natural soundstage, full of energy, to confidently drive any compatible speaker system, and bring out the best of its characteristics.
Available in Store Only
$8,995.00Save $NaN
$8,995.00

Get to know this product.

Luxman L-507Z Integrated Amplifier

Rated output 110W+110W(8Ω)220W+220W(4Ω) Input sensitivity/ input impedance PHONO(MM): 2.5mV / 47kΩ PHONO(MC ): 0.3mV / 100Ω LINE: 180mV / 47kΩ BAL.LINE: 180mV / 79kΩ MAIN IN: 1.05V / 47kΩ Output voltage PRE OUT: 1V Frequency response PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (within -3dB) Total harmonic distortion 0.007% or less (8Ω, 1kHz) 0.03% or less (8Ω, 20Hz to 20kHz) S/N ratio (IHF-A) PHONO (MM): 91dB or more PHONO (MC): 75dB or more LINE: 105dB or more Volume adjustment New LECUA1000 Amplification feedback circuit LIFES 1.0 Output configuration Bipolar 3-parallel push-pull Damping factor 300 Max. amount of tone control BASS: ±8dB at 100Hz TREBLE: ±8dB at 10kHz Power supply 230V~(50Hz) / 115V~(60Hz) Power consumption 350W 886W (under no signal), 0.4W (at standby) External dimensions 440(W) x 178(H) x 454(D) mm front side knob of 20mm and rear side terminal of 27mm included in depth Net weight 25.4kg (main unit) Accessories Remote control (RA-17A) Power cable

Specifications
