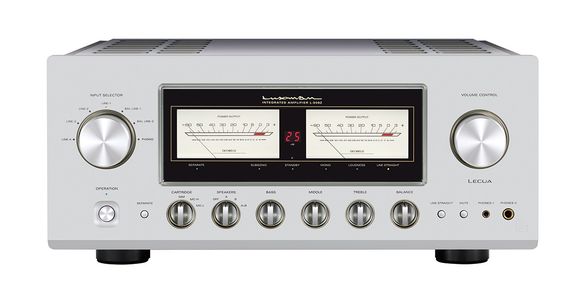

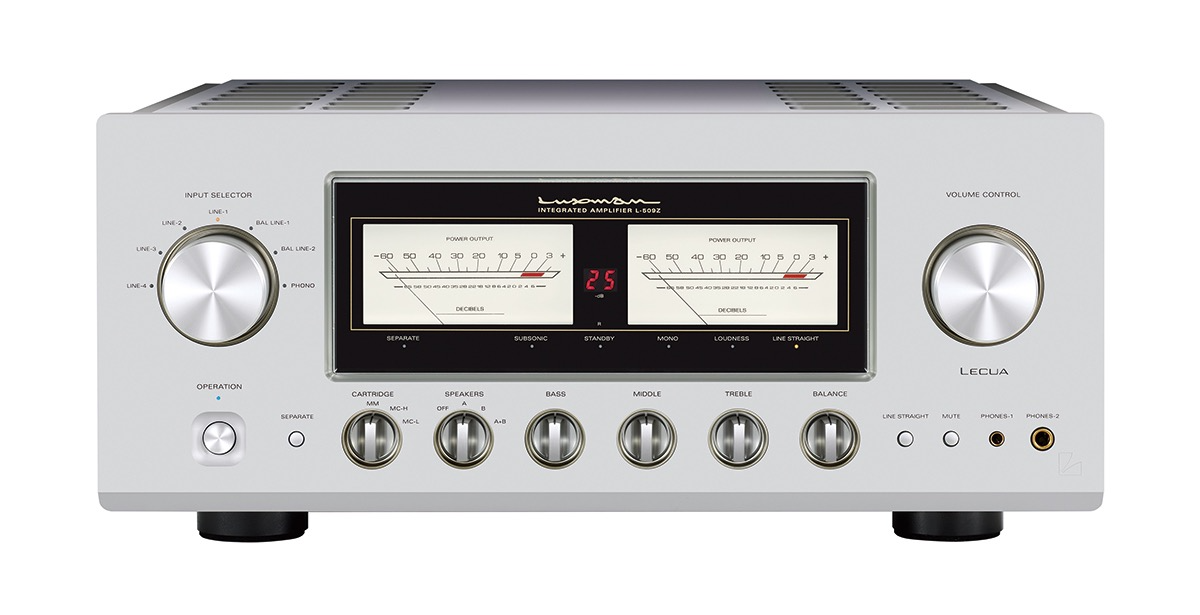

Luxman L-509Z Integrated Amplifier

Luxman

Model #:

Luxman L-509Z

At a Glance

Introducing our next-level “single-chassis separates” concept,pursuing the ideal with a new, all-in-one flagship amplifier.Taking our Z-Series integrated amplifiers to a performance peak. As the premium model for the new Z-Series generation, the L-509Z has evolved beyond the concept of a traditional integrated amplifier. Both the preamplifier and power amplifier sections simultaneously use our new generation amplification feedback engine “LIFES” for the first time. The volume control is supported by our new “LECUA-EX” attenuator system that suppresses sound quality deterioration and realizes a more precise feel of operation. The “single-chassis separates” concept, which aims for the ultimate in integrated amplifiers, now achieves unprecedented performance. Pursuing the ideals of audio enthusiasm, we are combining our passion for music with improved technology. The L-509Z, a new pinacle of LUXMAN integrated amplifier design. Single Chassis Separate. Class AB, 120W 8Ω, 240W 4Ω, 2 x LIFES Feedback Engine, 3-band Tone-EQ, LECUA-EX, Peel coat amplifier and audio circuit boards, 12v Trigger, IR Control Remote.Read More

Available in Store Only
$12,495.00

Get to know this product.

Product Overview

Product Overview

Luxman L-509Z Integrated Amplifier

Our latest amplification feedback engine literally brings music to life with LIFES* Version 1.0. Electronically controlled attenuator LECUA-EX* incorporating an elaborate rotation mechanism. Highly regulated power supply featuring a bespoke, highly regulated 600VA El transformer and newly developed large-capacity filter capacitors (10,000μFx 8).

The built-in high-quality phono equalizer circuit, which supports both MM and MC cartridges, features a new two-step gain switch to select between high and low MC settings to accommodate a wider range of MC cartridges, enriching quality vinyl playback in terms of both operation and sound quality. And a Mute-Button is now featured on the front panel. 3-band tone control In addition to BASS and TREBLE, a new MIDDLE control effective in the vocal and lead instrument frequencies bandwidth has been included. LR balance, line straight, loudness, and other functions are also conveniently at your fingertips.

The top panel is made of ultra-thick aluminum with an exquisite hairline finish. Large ventilation holes are carefully machined one by one to ensure efficient heat dissipation. Supporting the unit are four large insulator feet made from cast iron, their density gradient protecting the main chassis from unwanted external vibrations. Large needle-movement VU level meter and 7-segment LED. Headphones outputs with ground isolation

Rated output 120W + 120W (8Ω) / 220W + 220W (4Ω) Input sensitivity/ input impedance PHONO (MM): 2.5mV/47kΩ PHONO (MC-H): 0.3mV/100Ω PHONO (MC-L): 0.1mV/40Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/79kΩ MAIN IN: 1.1V/47kΩ Output voltage PRE OUT: 1V Frequency response PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 100kHz (within -3dB) Total harmonic distortion 0.007% or less (8Ω, 1kHz) 0.03% or less (8Ω, 20Hz to 20kHz) S/N ratio (IHF-A) PHONO (MM): 87dB or more PHONO (MC-H): 70dB or more PHONO (MC-L): 62dB or more LINE: 106dB or more Volume adjustment LECUA-EX Amplification feedback circuit LIFES 1.0 Output configuration Bipolar 4-parallel push-pull Damping factor 330 Max. amount of tone control BASS: ±8dB at 100Hz TREBLE: ±8dB at 760Hz TREBLE: ±8dB at 10kHz Power supply 230V~(50Hz) / 115V~(60Hz) Power consumption 390W 150W (under no signal), 0.5W (at standby) External dimensions 17.3" x 7.6" 19.2" front side knob of 20mm and rear side terminal of 37mm included in depth Net weight 64.6 lbs
