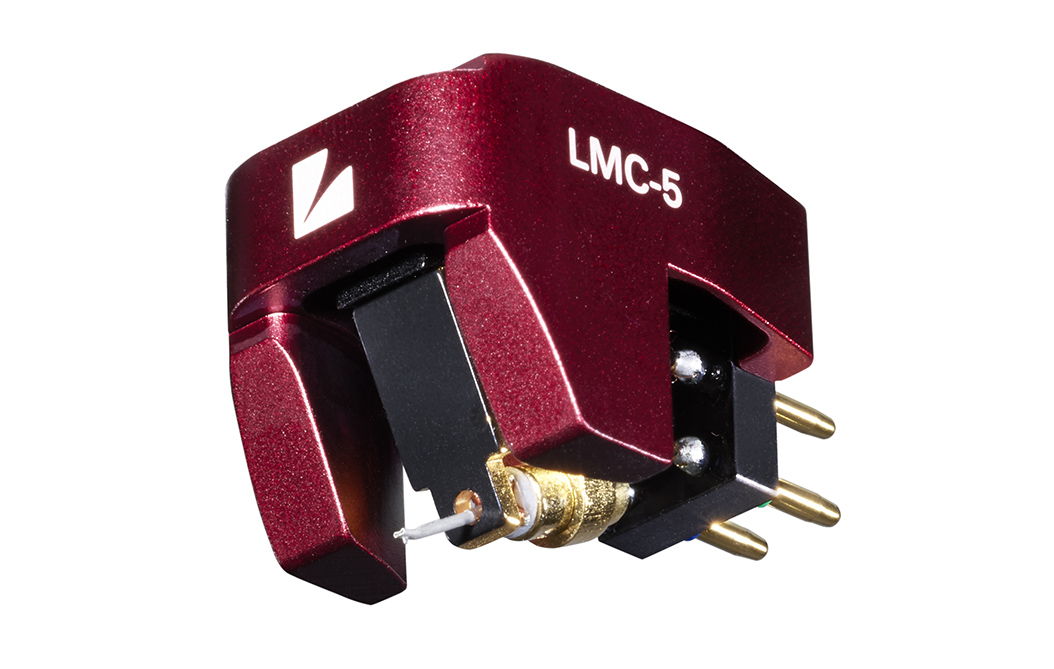

Luxman LMC-5 MC Cartridge
At a Glance
LUXMAN’s LMC-5 marks the return of moving coil phono cartridge production after a 40 year hiatus! This latest effort boasts a cross-mounted iron core, with unique signal generating coil structures, allied to an efficient compact magnetic system. Record groove contact is achieved via a SHIBATA profile stylus mounted to an aluminum pipe cantilever enabling excellent tracing ability with low background noise. In addition, the unique and sonically advantageous housing structure was achieved through research, repeated prototyping and attentive fine tuning. We have developed the LMC-5 with confidence and appreciation for all who love vinyl playback and value its musicality.Read More
Available in Store Only
$2,695.00
Get to know this product.
Product Overview
Luxman LMC-5 MC Cartridge
ype MC (MOVING COIL) Internal impedance 4.7Ω (1kHz) Tracking force 2.1 to 2.3g (2.2g as standard) Output voltage 0.4mV (1kHz, 3.54cm / sec.) Frequency response 10Hz to 35kHz Channel separation / balance 28dB (1kHz) / 0.5dB (1kHz) Recommended load impedance (when head amplifier is connected) 40Ω or more Recommended load impedance (When step-up transformer is connected) 2.5 to 10Ω Dynamic compliance 8 x 10-6cm / dyne (100Hz) Stylus Solid diamond / SHIBATA stylus Cantilever Φ0.5mm aluminum Vertical tracking angle 25° Magnet Samarium-cobalt magnet BH20 Coil 30μm UEW Material of magnetic circuit Pure iron Terminals Φ1.2mm, White (L+) , Blue (L−) , Red (R+) , Green (R-) Body Aluminum A6063 Dimensions, Threaded holes 17.0 (W) x 18.3 (H) x 21.3 (D)mm (excluding terminals), M2.6mm x 2 Weight 8.5g Accessories Manual, Washer x 2, Screws M2.6 (5mm x 2, 8mm x 2, 10mm x 2), Hex wrench and stylus cover
