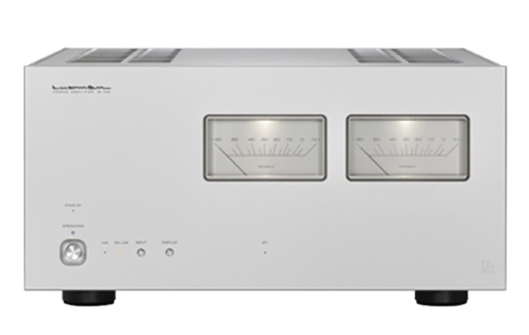

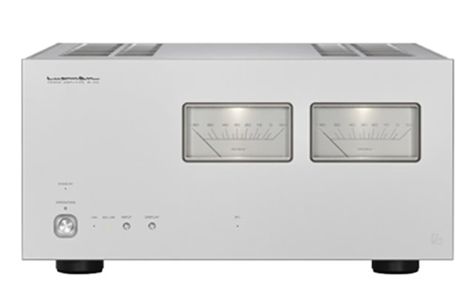

Luxman M-10X Amplifier

Luxman

Model #:

M-10X

At a Glance

The M-10x is our flagship stereo/mono power amplifier designed to replace the long-running M-900u, first released in 2013. Years in development, M-10x becomes a premier model in our next-generation lineup to celebrate the 100th anniversary of Luxman’s founding in 1925. Superbly crafted and with most outstanding sound quality, the M-10x is destined to satisfy audiophiles and music lover’s with its almost limitless loudspeaker drive capability. Original Luxman amplifier design hallmarks, such as ODNF circuitry were carefully analyzed and then further evolved through extensive computer simulations to achieve a radical improvement in audio performance. Only after repeated new circuit components auditioning and prototype listening tests were the results judged suitable for adoption as “LIFES1.0” in Luxman’s new M-10x. A three dimensional chassis housing design, in common with the D-10x is featured. Improved LED backlit analog level (VU) meters are employed with the left channel meter exactly centered for BTL-mono use priority. Equipped with 12 volt trigger input/output connections to daisy chain multiple amplifiers in a home theater or enable convenient integration into automated systems.Read More

Available in Store Only
$19,995.00

Get to know this product.

Product Overview

Product Overview

Luxman M-10X Power Amplifier

Looking ahead to the 100th anniversary of our founding in 2025, we have returned to the fundamentals of music playback and have finally achieved a LUXMAN milestone, while still looking toward the future, we present our new generation flagship stereo power amplifier, the M-10X.

The most important innovation is the realization of our new amplification feedback engine “LIFES”, which has been developed and refined through the skillful attention of LUXMAN’s technical team. While based on our traditional ODNF technology, we implemented a fundamental review of the system and every detail from the layout down to individual components which all contribute to a rich musicality, full of vitality.

High performance drivability enhances playback through any speaker system. A beautiful chassis housing design, with blasted white finish, is proudly complimented with proper analog meters. This exquisite flagship model, the M-10X, can evoke what we mean by the true depth of sound, marking the beginning of a new era for LUXMAN.

Solid state, class-AB power amplifier (output stage biased into class-A operation up to 12W). Inputs: 1 pair single-ended (RCA), 1 pair balanced (XLR). Outputs: 2 pairs binding posts. Power output: 150Wpc into 8 ohms (21.76dBW), 300W into 4 ohms (21.76dBW), 600W into 8 ohms (27.8dBW) as bridged monoblock (BTL). Instantaneous maximum output power: 1200W into 1 ohm (21.76dBW), 2400W into 2 ohms (21.76dBW), BTL. Frequency response: 20Hz–20kHz, +0/–0.1dB; 1Hz–130kHz, +0/–3dB. Voltage gain: 29dB. Input sensitivity (for 150W into 8 ohms): 1.24V. Input impedance: 51k ohms (unbalanced, "Line"), 28k ohms (balanced). Damping factor: 600 according to EIAJ Current Injection Method. THD: <0.003%, 1kHz at 150W into 8 ohms, <0.04%, 20Hz–20kHz. Signal/noise: 117dB, IHF A-weighted. Power consumption: 540W (max), 250W (no signal), 1W, standby. Dimensions: 17.3" (440mm) W × 8.8" (224mm) H × 19.1" (485mm) D. Weight: 106.5lb (48.4kg).
