MM and MC inputExact loading options for any cartridgeFully discrete circuit board designSpecial low core saturation toroidal transformer custom designed for phono stage requirementsEnvironmental friendly - absolutely zero standby power consumptionSplit Passive RIAA and DECCA EQHeavy aluminium frontplate with steel chassisMinimal electromagnetic interference from power supply to phono preampBig chassis design enables huge distance between power transformer and amplifier sectionMade in the EURead More

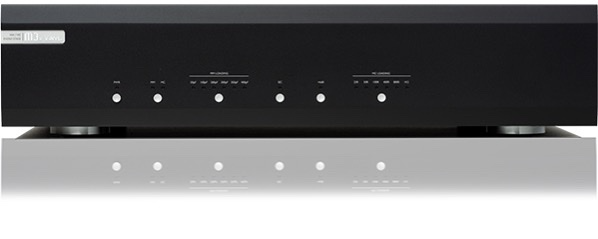

M3x Vinyl - Specifications MM Input Frequency response: RIAA or RIAA/IEC ±0 .2dB Input sensitivity: 5mV in for 500mV out (at 1 kHz) Input impedance: 47KΩ Input capacitance: 50-400pF selectable Gain: 40 or 46dB with +6dB function THD+N: <0.028% Signal to noise ratio: 95dB Crosstalk: better than 100dB MC Input Frequency response: RIAA or RIAA/IEC ±0.3dB Input sensitivity: 500μV in for 500mV out (at 1 kHz) Input impedance: 25Ω to 1,2KΩ selectable Gain: 60 or 66dB with +6dB function THD+N: <0.28% Signal to noise ratio: 80dB Crosstalk: better than 90dB Output 1 pair RCA: left and right 500mV nom 10V max Input 1 pair RCA Power requirement Mains voltages: 230V/115V; AC 50/60Hz Consumption: 20 Watts maximum. 0W in standby) Weight and Dimensions Unit only, unboxed: 6.59 kg In shipping carton & inc . accessories: 10.15 kg W x H(incl. feet) x D(incl. terminals): 440 x 105 x 390mm
