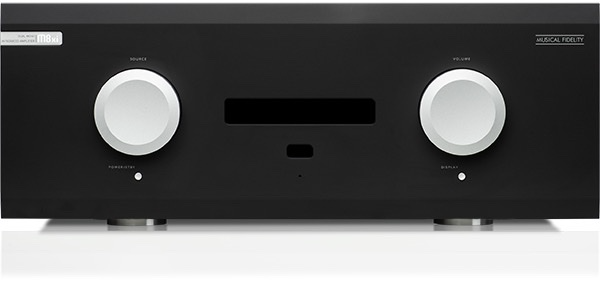

The M8xi is a separate preamp with two monobloc power amps sharing a common chassis. Each has its own heat sink and separate transformer. Genuinely dual mono. The preamp has its own separate power supply and is mounted close to the input sockets. Consequently, PCB tracks are very short. This elegant idea ensures that both channels' signals are ultra-low impedance the instant they get into the amplifier. This is a significant detail. Each channel has twelve big bipolar transistors - 200 amps peak to peak is easily available. The metalwork is high quality. The front panel is a custom made fine line extrusion of milspec aluminum. The custom made heat sinks have outstanding dissipation characteristics and finish. The M8xi construction has a feeling of solidity and quality.Read More
M8xi - Specifications Amplifier Power Output (20Hz - 20kHz): 550 Watts per channel into 8 Ohms (870W into 4 Ohms); Peak 1.6kW into 2 Ohms Maximum output voltage: 67 Volts RMS, 20Hz to 20 kHz; onset of clipping (190 Volts peak-to-peak) THD+N: <0.004% typical, 20Hz to 20 kHz (XLR) Signal/noise ratio: > 86dB ‚A‘-weighted (XLR) Input impedance: 25KΩ (RCA), 50KΩ (XLR) Frequency response: +0, –1dB, 10Hz to 100 kHz Maximum peak output current: 105 Amps Damping factor: 150 Output devices: 3+3 pairs (bridged arrangement) per channel Inputs (analogue) 4 pairs line level RCA connectors 2 pairs line level XLR (balanced) connectors Inputs (digital) 2x Coax S/PDIF up to 24 bit 192kHz 2x Optical S/PDIF up to 24 bit 96kHz 1x USB B Asynchronous USB up to 24 bit 192kHz Outputs (analogue) 1 pair line level RCA fixed 1 pair pre-out RCA variable 1 pair line level XLR variable Outputs (digital) 1x Coax S/PDIF up to 24 bit 192kHz 1x Optical S/PDIF up to 24 bit 96kHz General Dimensions (WxHxD): 485 x 185 x 510mm
