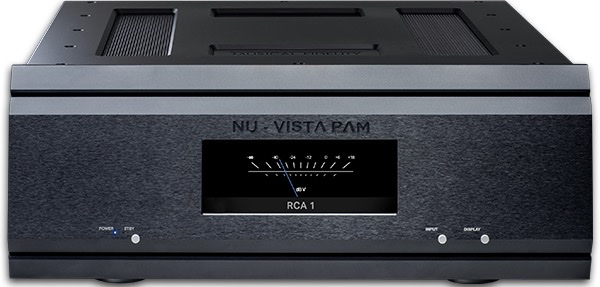

The Nu-Vista PAM is a fully balanced, discrete mono power amplifier with separate power supply unit. Based on our excellent Nu-Vista 800 circuit we decided to go all out “fully balanced” on the Nu-Vista range.The Nu-Vista PAM features the tried and tested Nu-Vista stage featuring 6S51N nuvistors in a discrete class A amplifier buffer.Technical TalkThis is followed by a balanced configuration circuit and balanced input high power, low distortion “bridged” output amplifier stage. The power stages have 2x 5 pairs of high power thermally compensated output devices for reliable and stable operation.Read More
PRICE PER EACH MONO AMPLIFIER
Amplifier High output power, greater than 600W into 8 ohms, 1000W into 4 ohms, 1500W peaks into 2 ohms Output Voltage: 69 Volts RMS Output Current: 150 Amps peak to peak Damping factor: 180 Output devices: 5+5 pairs per channel Gain: 16x (23.5 dB) THD+N: < 0.003 % typical, 20Hz to 20 kHz Signal / noise ratio: >108dB ‘A’-weighted Input impedance: 100 k Ohms Input sensitivity for full output: 4.3 Volts RMS Frequency response: + 0, –1dB, 5Hz to 50 kHz In & Output 4 fully independent inputs: 2x RCA & 2x XLR 2 loop through outputs: 1x RCA & 1x XLR Speaker outputs: 2 pairs 4mm banana plug/binding posts Trigger input and output: 3.5mm mono jack socket Trigger level ±5V to ±12V General Information Weight PAM: 27kg net (35kg) Weight PAM PSU: 40kg net (50kg) Dimensions PAM (WxHxD): 483 x 187,5 x 475 (494 with connectors) Dimensions PAM PSU (WxHxD): 483 x 187,5 x 475 (478 with connectors) Mains voltages: 115/230VAC 50/60Hz (factory pre-set); 100VAC 50/60Hz (alternative) Consumption <0.5W in standby mode; 130W on and idle; 2150W maximum
