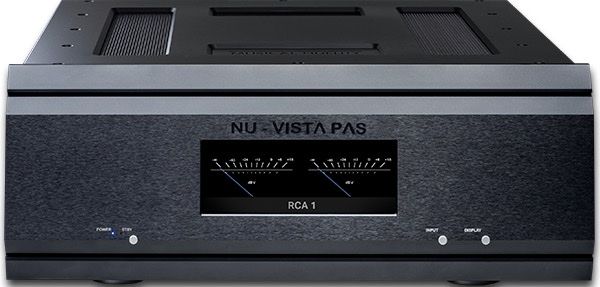

Based on our excellent Nu-Vista 800 circuit we decided to go all out “fully balanced” on the Nu-Vista range.The Nu-Vista PAS features the tried and tested Nu-Vista stage featuring 6S51N nuvistors in a discrete class A amplifier buffer.Technical TalkThis is followed by a balanced configuration circuit and balanced input high power, low distortion output amplifier stage. The power stage has 5 pairs of high power thermally compensated output devices for reliable and stable operation.Read More
Amplifier High output power, greater than 300W into 8 ohms, 500W into 4 ohms, 1000W peaks into 2 ohms Output Voltage: 49 Volts RMS Output Current: 130 Amps peak to peak Damping factor: 200 Output devices: 5 pairs per channel Gain: 16x (23.5 dB) THD+N: < 0.003 % typical, 20Hz to 20 kHz Signal / noise ratio: >108dB ‘A’-weighted Channel separation: >96dB Input impedance: 100 k Ohms Input sensitivity for full output: 3 Volts RMS Frequency response: + 0, –1dB, 5Hz to 50 kHz In & Output 4 fully independent inputs: 2x RCA & 2x XLR 2 loop through outputs: 1x RCA & 1x XLR Speaker outputs: 2 pairs 4mm banana plug/binding posts Trigger input and output: 3.5mm mono jack socket Trigger level ±5V to ±12V General Information Weight PAS: 27kg net (35kg) Weight PAS PSU: 40kg net (50kg) Dimensions PAS (WxHxD): 483 x 187,5 x 475 (494 with connectors) Dimensions PAS PSU (WxHxD): 483 x 187,5 x 475 (478 with connectors) Mains voltages: 115/230VAC 50/60Hz (factory pre-set); 100VAC 50/60Hz (alternative) Consumption <0.5W in standby mode; 130W on and idle; 1060W maximum
