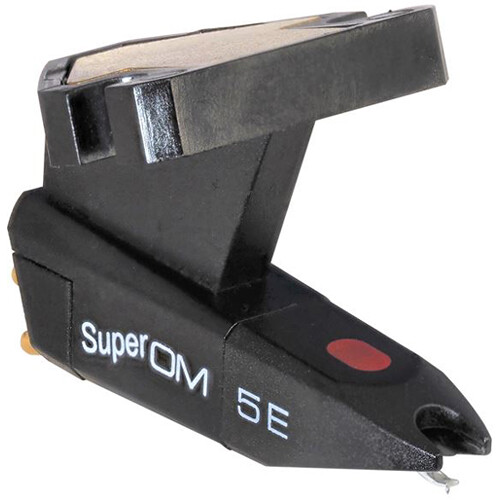

The Super OM 5E major improvements:1. By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation and reduced distortion.2. OM Super cartridges models have split pole PINs which reduces magnetic losses at the treble end. This technology extends the frequency range and improves phase linearity. 3. OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound) which ensures high rigidity and freedom from resonances.Read More
Output voltage at 1000 Hz, 5cm/sec. - 4 mV Channel balance at 1 kHz - 1.5 dB Channel separation at 1 kHz - 22 dB Channel separation at 15 kHz - 15 dB Frequency response - 20-20.000 Hz + 3 / -3 Tracking ability at 315Hz at recommended tracking force - 60 µm Compliance, dynamic, lateral - 20 µm/mN Stylus type - Elliptical Stylus tip radius - r/R 8/18 µm Tracking force range - 1.5-2.0 g (15-20 mN) Tracking force, recommended - 1.75 g (17.5 mN) Tracking angle - 20° Internal impedance, DC resistance - 1 kOhm Internal inductance - 580 mH Recommended load resistance - 47 kOhm Recommended load capacitance - 200-500 pF Cartridge colour, body/stylus - Black/Black Cartridge weight incl. extra weight - 5 g Cartridge weight excl. extra weight - 2.5 g
