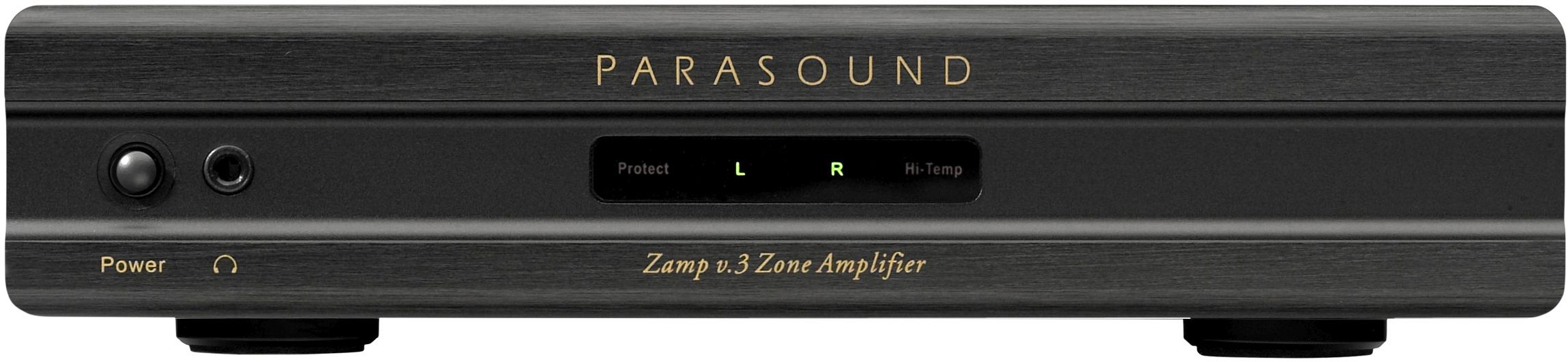

Parasound® 2 Channel Zone Amplifier
Model #: Zamp v.3
136717
Parasound
At a Glance
The Zamp v.3 continues Parasound's proven amplifier design to give you stellar reliability, amazing sound quality, and plenty of power, all in a small package. Whether you use it as a zone amplifier or the centerpiece of a mini-component system, this full featured amplifier will exceed your expectations.
Available in Store Only
$449.00
Get to know this product.
- 45 watts per channel into 8 O
- 60 watts per channel into 4 O
- 90 watts bridged into 8 O mono
- Fully discrete circuitry with Toroid power transformer
- Low heat design
- Headphone jack
- Indicators for AC present and channel operating status
- Automatic on/off by 9 - 12 V trigger
- Gold-plated RCA input jacks and looping line output jacks
- 5-way speaker terminals
- Compact chassis; 1 rack space high
Continuous power output
- 45 watts RMS x 2, 20 Hz - 20 kHz, 8 O, both channels driven
- 60 watts RMS x 2, 20 Hz - 20 kHz, 4 O, both channels driven
- 90 watts RMS x 1, 20 Hz - 20 kHz, 8 O, minimum impedance
Current capacity
- 12 amperes peak per channel
Frequency response
- 5 Hz - 100 kHz, +0/-3 dB
Total harmonic distortion
- < 0.07 % full power
- < 0.02 % typical levels
IM distortion
- < 0.05 %
Dynamic headroom
- 1.5 dB
Inter-channel crosstalk
- 80 dB at 1 kHz; 60 dB at 20 kHz
Input Impedance
- 33 k O
Input Sensitivity
- 600 mV; 1.5 V for full output
S/N Ratio
- 116 dB, input shorted, IHF A weighted
Dimension
- Height without feet: 1.75"
