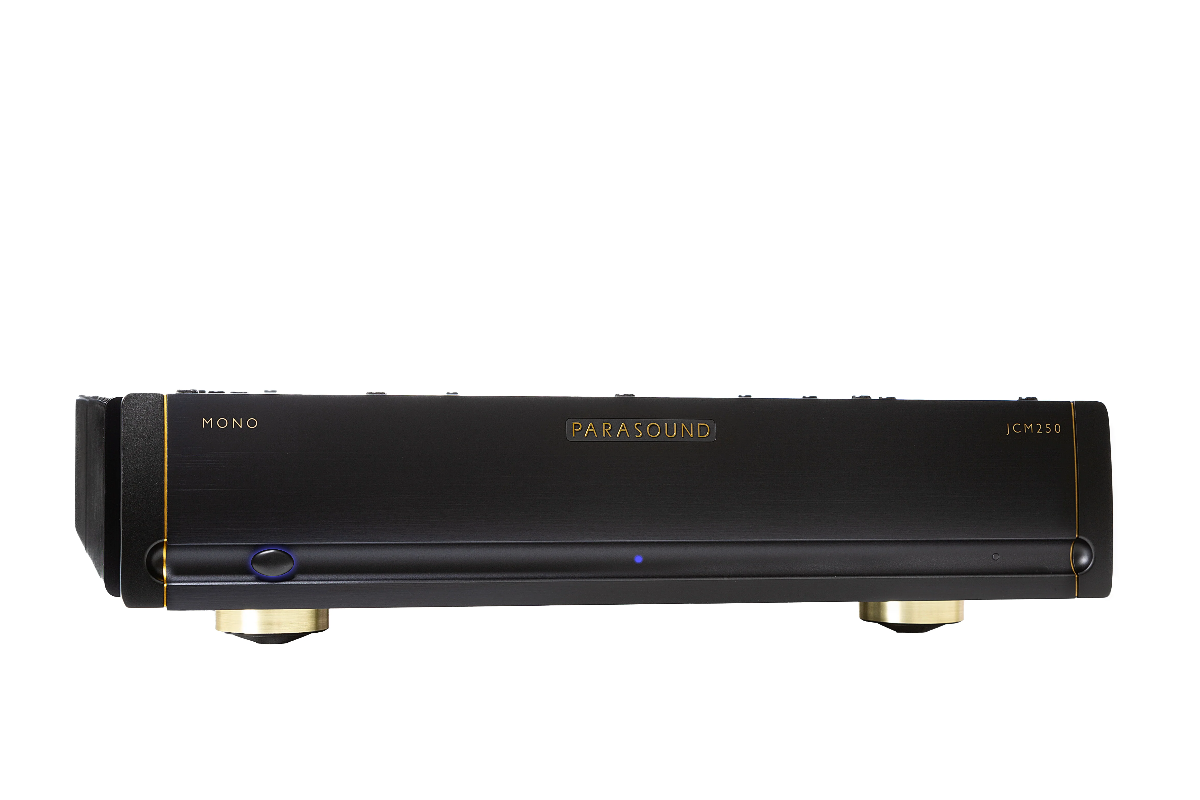

The Halo JCM250 is an uncompromising mono power amplifier that sets new standards in power and fidelity. With 250 watts at 8 Ω up to 800 watts at 2 Ω, it delivers exceptional audio performance. The balanced XLR and unbalanced RCA inputs ensure compatibility with various audio sources. Its dual-mono design with two transformers provides exceptional channel separation and sonic accuracy. The direct-coupled design, without capacitors in the signal path, preserves signal integrity and enhances transparency. Experience unparalleled compact power and fidelity with the Halo JCM250 mono power amplifier.Read More
PRICE IS FOR EACH
Specifications Power Output 250 watts@8 Ω 450 watts@4 Ω 800 watts @2 Ω Power measurements are with 120 VAC: 0.15% THD, RMS continuous power, full audio band (20 Hz - 20 kHz) Class A Power Output 8 Watts, bias set to high 4 Watts, bias set to low Current Capacity 100 amps, peak Slew Rate > 130 volts per microsecond Frequency Response 2 Hz - 110 kHz, +0/-2 dB 20 Hz - 20 kHz, +0/-0.25 dB Total Harmonic Distortion (THD) < 0.15 % at full power < 0.02 % at typical listening levels IM Distortion < 0.03 % TIM Unmeasurable Input Impedance Unbalanced: 50 kΩ Balanced: 100 kΩ, (50 kΩ per leg) S/N Ratio,inputs shorted >120 dB, IHF A-weighted, bias set to Low >118 dB, IHF A-weighted, bias set to High >110 dB, Unweighted, bias set to Low >108 dB, Unweighted, bias set to High Total Gain 29 dB (Gain switch set to normal) 23 dB (Gain switch set to low) Input Sensitivity for 28.28 V into 8Ω (Gain switch set to normal) Unbalanced: 1V Balanced: 1V per leg DC Trigger Requirements +9 Vdc to +12 Vdc, 5 mA Audio Trigger Requirement 2.5 mV - 10 mV XLR Pin Identification 1 = Ground (Shield) 2 = Positive 3 = Negative (Return) Dimensions Width: 17.25" (437 mm) Height without feet: 3.5" (89 mm), 2U Height with feet: 4.125" (105 mm) Depth: 20" (508 mm) Depth with cables: 21.5" (546 mm) Net Weight 42 lbs (19.1 kg) ShippingWeight 50 lbs (22.6 kg) PowerRequirement Standby:<1 Watt Idle (bias set to low): 125 Watts Idle (bias set to high): 240 Watts Typical Listening levels: 300 Watts Maximum: 800 Watts
