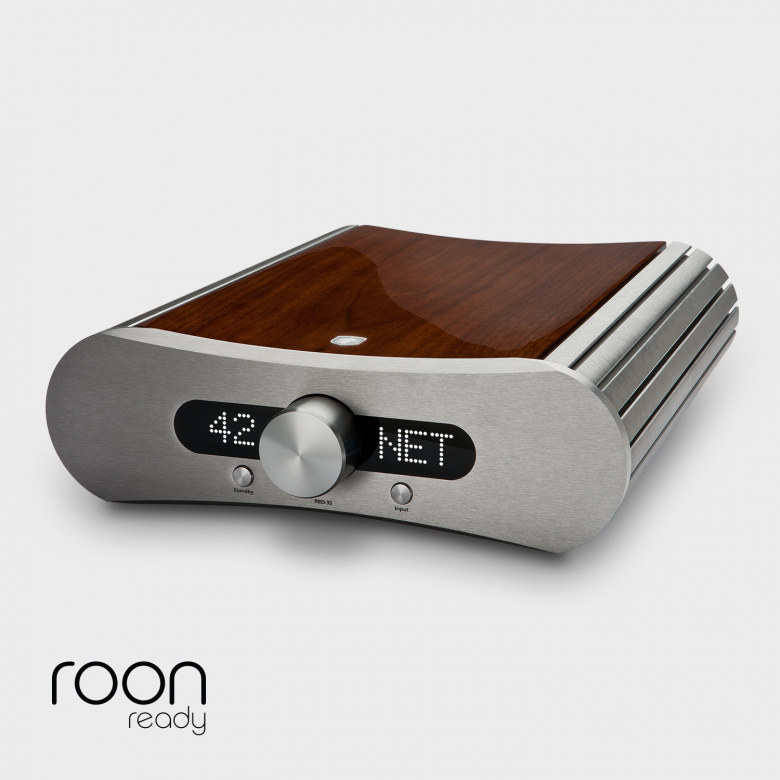

Preamp

At a Glance

FREQUENCY RESPONSE 20 Hz-100 kHz - 0.5 dB SIGNAL TO NOISE RATIO > 110 dB LINE OUT MAXIMUM LEVEL 13V balanced, 6,5V unbalanced TOTAL HARMONIC DISTORTION < 0,001% pre out INPUT IMPEDANCE 20 kO RCA or 40 kO Balanced LINE OUTPUT IMPEDANCE 75 O VOLTAGE GAIN 10 dB CONNECTORS BALANCED ANALOGUE INPUTS 1 pair gold plated XLR Neutrik UNBALANCED ANALOGUE INPUTS 2 pairs of gold plated RCA Stereo DIGITAL INPUTS 1 pc USB type B, 1 pc Toslink, 1 pc RCA, 1 pc Ethernet, 1 pc WiFi, 1 pc aptX HD Bluetooth 4.2 BALANCED ANALOGUE OUTPUTS 2 pairs gold plated XLR Neutrik UNBALANCED ANALOGUE OUTPUTS 1 pair of gold plated RCA Stereo TRIGGER, 12 V 1 pc mini jack SIZE AND WEIGHT POWER REQUIREMENTS 115 VAC/230 VAC, 50 Hz/60 Hz, 30W max POWER CONSUMPTION STDB/IDLE/MAX < 1W/14W/30W DIMENSIONS (WXHXD) 325 x 105 x 420 mm / 12.8 x 4.1 x 16.5" WEIGHT 7 kg / 15.4 lbRead More
