Preamp

Gato Audio

Model #:

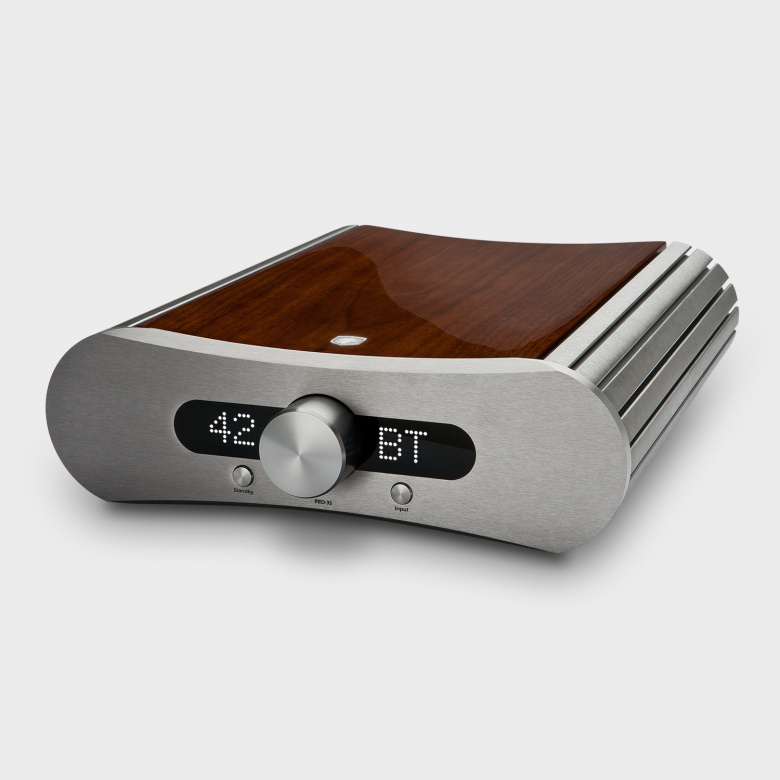

PRD-3S Preamplifier and DAC

At a Glance

FREQUENCY RESPONSE 20 Hz-100 kHz - 0.5 dBSIGNAL TO NOISE RATIO > 110 dBLINE OUT MAXIMUM LEVEL 13V balanced, 6,5V unbalancedTOTAL HARMONIC DISTORTION < 0,001% pre outINPUT IMPEDANCE 20 kO RCA or 40 kO BalancedLINE OUTPUT IMPEDANCE 75 OVOLTAGE GAIN 10 dB CONNECTORS BALANCED ANALOGUE INPUTS 1 pair gold plated XLR NeutrikUNBALANCED ANALOGUE INPUTS 2 pairs of gold plated RCA StereoDIGITAL INPUTS 1 pc USB type B, 1 pc Toslink, 1 pc RCA, 1 pc aptX BluetoothBALANCED ANALOGUE OUTPUTS 2 pairs gold plated XLR NeutrikUNBALANCED ANALOGUE OUTPUTS 1 pair of gold plated RCA StereoTRIGGER, 12 V 1 pc mini jack SIZE AND WEIGHT POWER REQUIREMENTS 115 VAC/230 VAC, 50 Hz/60 Hz, 30W maxPOWER CONSUMPTION STDB/IDLE/MAX < 1W/14W/30WDIMENSIONS (WXHXD) 325 x 105 x 420 mm / 12.8 x 4.1 x 16.5"WEIGHT 7 kg / 15.4 lbRead More

Available in Store Only
$1,900.00

Get to know this product.

Product Overview

Product Overview

FREQUENCY RESPONSE 20 Hz-100 kHz - 0.5 dBSIGNAL TO NOISE RATIO > 110 dBLINE OUT MAXIMUM LEVEL 13V balanced, 6,5V unbalancedTOTAL HARMONIC DISTORTION < 0,001% pre outINPUT IMPEDANCE 20 kO RCA or 40 kO BalancedLINE OUTPUT IMPEDANCE 75 OVOLTAGE GAIN 10 dB CONNECTORS BALANCED ANALOGUE INPUTS 1 pair gold plated XLR NeutrikUNBALANCED ANALOGUE INPUTS 2 pairs of gold plated RCA StereoDIGITAL INPUTS 1 pc USB type B, 1 pc Toslink, 1 pc RCA, 1 pc aptX BluetoothBALANCED ANALOGUE OUTPUTS 2 pairs gold plated XLR NeutrikUNBALANCED ANALOGUE OUTPUTS 1 pair of gold plated RCA StereoTRIGGER, 12 V 1 pc mini jack SIZE AND WEIGHT POWER REQUIREMENTS 115 VAC/230 VAC, 50 Hz/60 Hz, 30W maxPOWER CONSUMPTION STDB/IDLE/MAX < 1W/14W/30WDIMENSIONS (WXHXD) 325 x 105 x 420 mm / 12.8 x 4.1 x 16.5"WEIGHT 7 kg / 15.4 lb
Specifications

General Specs

ColorSilver
