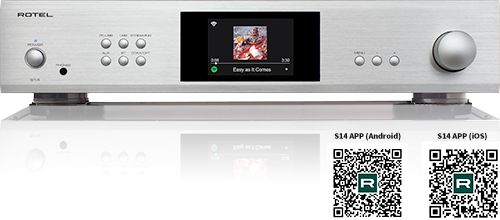

Rotel S14 Integrated Streaming Amplifier

Rotel S14 Integrated Streaming Amplifier

Maximum Power Output 150W/Ch (4Ω) Continuous Power Output 80W/Ch (8Ω) Total Harmonic Distortion (THD) <0.04% Frequency Response Line Level Inputs: 10Hz - 100kHz, ±0.5dB Digital Inputs: 10Hz - 90kHz, ±2.0dB, Max S/N Ratio (IHF "A" Weighted) Line Level Inputs: 100dB Digital Inputs: 98dB SPDIF LPCM (Up to 24-bit/192kHz) Intermodulation Distortion (60Hz:7kHz, 4:1) <0.03% Damping Factor 400 Input Sensitivity Line Level Inputs: 200mV Digital Inputs: -20dBfs Input Impedance Line Level Inputs: 47kΩ Digital Inputs: 75Ω Input Overload Line Level Inputs: 4.5V Tone Controls ±10dB at 100Hz / 10kHz Coax/Optical Digital Input Signals SPDIF LPCM (Up to 24-bit/192kHz) PC-USB USB Audio Class 2.0 (up to 24-bit/384kHz)* *Driver installation required MQA and MQA Studio (up to 24-bit/384kHz ) Dimensions (W × H × D) 17" × 3 5/8" × 13 1/2" FRONT PANEL HEIGHT 3.15" Power Requirements 120V, 60Hz Power Consumption 280W Standby Power Consumption <0.5W Net Weight 20.17lbs.
