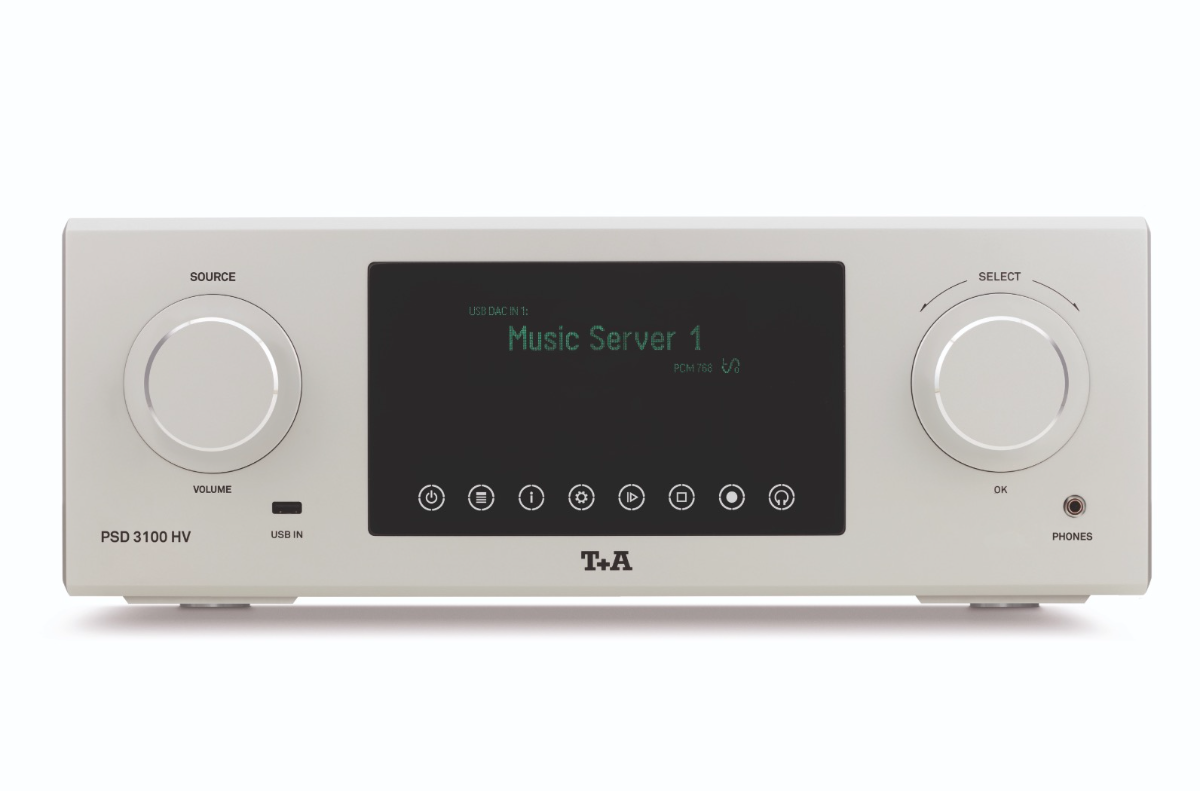

The PSD 3100 HV was developed with the requirement to combine the performance of our finest pre-amplifiers and converters with the convenience of use of a multi-source player. With an array of professional digital inputs, FM, FM-HD, DAB+ radio, Bluetooth and Connect services, and streaming for local and global Internet and network sources, the PSD 3100 HV is capable of directly converting everything digital into top-quality analogue signals. As such it can be considered as the consistent audiophile answer to all those whose music collection has left the age of the CD behind. The PSD 3100 HV is the universal control centre for a High-End system, requiring only the connection of suitable power amplifiers or active loudspeakers. At the same time the device embodies our uncompromising scientific methodology: optimum reproduction quality without harmful interaction between the various analogue and digital sub-assemblies is only possible in a multi-function device if it is based on unique technologies and our many decades of expertise.Read More
Specifications Pre-Amplifier Frequency response +0 /-3dB : 0,5 Hz – 300 kHz Signal / noise ratio : 108 / 112 dB THD | Intermodulation | Channel separation : < 0,001 % | < 0,001 % | > 108 dB Nominal input sensitivity High level (RCA) : 250 mVeff … 9 Veff / 20 kOhm | 500 mVeff …18 Veff / 40 kOhm Analog output RCA | XLR : nom 1 Veff, max 9,5 Veff / 20 Ohm | nom 1,45 Veff, max 19,6 Veff / 40 Ohm Headphone output Headphone output : 4,4 mm Pentaconn (6 Ohms) Connections Digital inputs : 1 x AES-EBU 32…192 kHz / 16-24 Bit 4 x S/P-DIF: 1 x Standard Coax 1 x high-quality BNC 32…192 kHz / 16-24 Bit, 2 x optical TOS-Link 32…192 kHz / 16-24 Bit 1 x USB DAC: Device-Mode with max. 768 kSps (PCM) und DSD 512*, supports asynchronous data transfer. *DSD512 with Windows PC with the appropriate driver installed or Linux PC with 4.4 Kernel or higher only. 2 x USB Master-Mode for USB-Mass storage (Stick or HDD) 2 x HDMI IN, 1 x HDMI OUT with ARC 1 x IPA (LVDS) D/A-Converter PCM : Double-Differential-Quadruple-Converter with four 32-Bit Sigma-Delta D/A-Converter per channel. 705,6 / 768 kbps conversion rate DSD : T+A-True-1Bit DSD D/A-Converter, up tp DSD 512 (24,5 MHz), native bitstream Upsampling (PCM) : T+A-Signalprocessor – synchronous upsampling with 4 selectable oversampling algorithms FIR short, FIR long, Bezier/IIR, Bezier Analog filter : Phase-linear Bessel filter 3rd order, switchable with 60 or 120 kHz cut-off frequency Frequency response : PCM 44.1 kSps: 2 Hz – 20 kHz PCM 48 kSps: 2 Hz – 22 kHz / DSD 64: 2 Hz – 44 kHz PCM 96 kSps: 2 Hz – 40 kHz / DSD 128: 2 Hz – 60 kHz PCM 192 kSps: 2 Hz – 80 kHz / DSD 256: 2 Hz – 80 kHz PCM 384 kSps: 2 Hz – 100 kHz / DSD 512: 2 Hz – 100 kHz PCM 768 kSps: 2 Hz – 120 kHz THD : < 0.001 % S/N ratio : > 117 dB Channel separation : > 110 dB Streaming Client Streaming Client : Streaming client module 3rd generation with Quad Core processor
Tuner Internet Radio : Airable Internet Radio Service (> 11000 Stationen weltweit) FM, FM-HD : 87,5 – 108 MHz; sensitivity 1 µV; S/N > 65 dBA DAB, DAB+ : 168 -240 MHz (Band III); sensitivity 2,0 µV, S/N > 96 dBA Features : RDS/RDBS, Station name (PS), Programm type (PTY), Radiotext (RT) Bluetooth Bluetooth Standard / Codec : A2DP (Audio), AVRCP 1.4 (Control) / aptX® HD, SBC, AAC Mains / Accessories / Dimensions Mains 2 x 110-120 V or 220-240 V, 50-60 Hz. Operation: 30 W digital / 40 W analog, Standby: < 0,5 W Standby : < 0,5 W Dimensions (W x H x D) / Weight : Dimensions (W x H x D) / Weight Accessories : 2x power cord, remote control F 3100, BNC adapter Finishes : silver laquer 47 or titanium laquer 64
