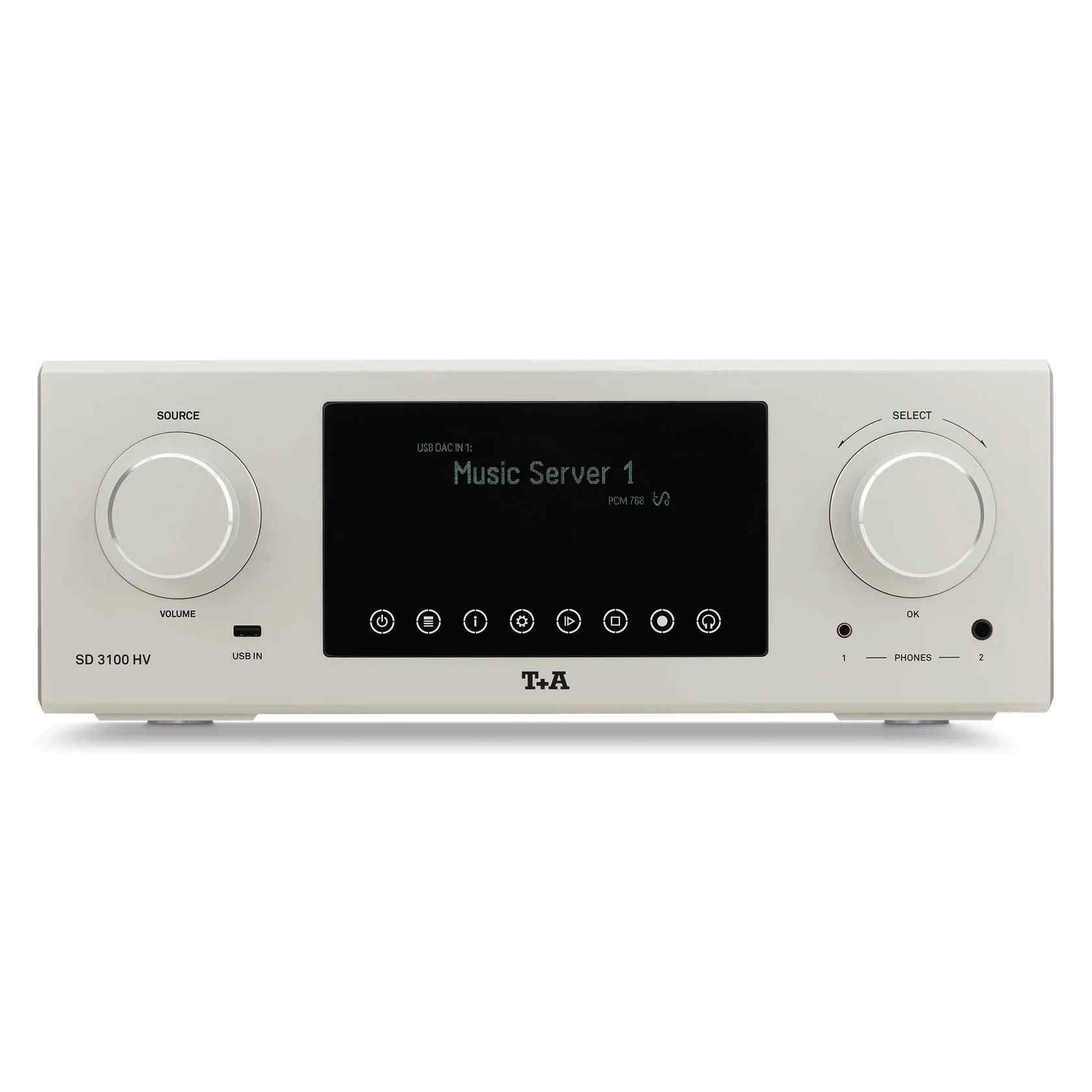

A native DSD or PCM streaming DAC with an analog output, and a range of digital inputs, including Bluetooth. The SD 3100 HV is a dedicated streaming DAC without the preamp stage of the SDV 3100 HV. It can be connected to the P 3100 HV preamplifier or the PA 3100 HV integrated amplifier via one of its analog outputs. Connect the PDT 3100 HV reference disc mechanism to play CD or SACD. The headphone amp is no afterthought on the SD 3100 HV, but is an extremely high-performance analog design which also uses HV (T+A's high voltage) technology. It works completely in Class A. As with all HV products, the SD 3100 HV is built of pure aluminum, with no ferro-magnetic materials. There are five compartments separated by aluminum dividing walls for each of the sections: digital inputs, the D/A converters with analog output stage, the analog power supply, the digital power supply, and the control section.Read More
Specifications Sample Rate PCM: 768 kHz, 32 bit DSD: DSD 1024 Outputs Headphone: 6.3 mm jack, 4.4 mm Pentaconn Digital: AES, Coax, HDMI ARC Analog: XLR, RCA Digital Inputs: AES, 2 x coax, 2 x BNC, 2 x optical, 2 x USB, 2 x USB data, 2 x HDMI, Bluetooth Radio: FM, FM-HD, DAB+ Network: Ethernet, Wi-Fi Dimensions (HWD): 6.7" x 18" x 18" (17 x 46 x 46 cm) Weight: 57.3 lb (26 kg)
