Weiss Engineering DAC 205 MK2 Multi-Format DAC, Toslink/RCA Only

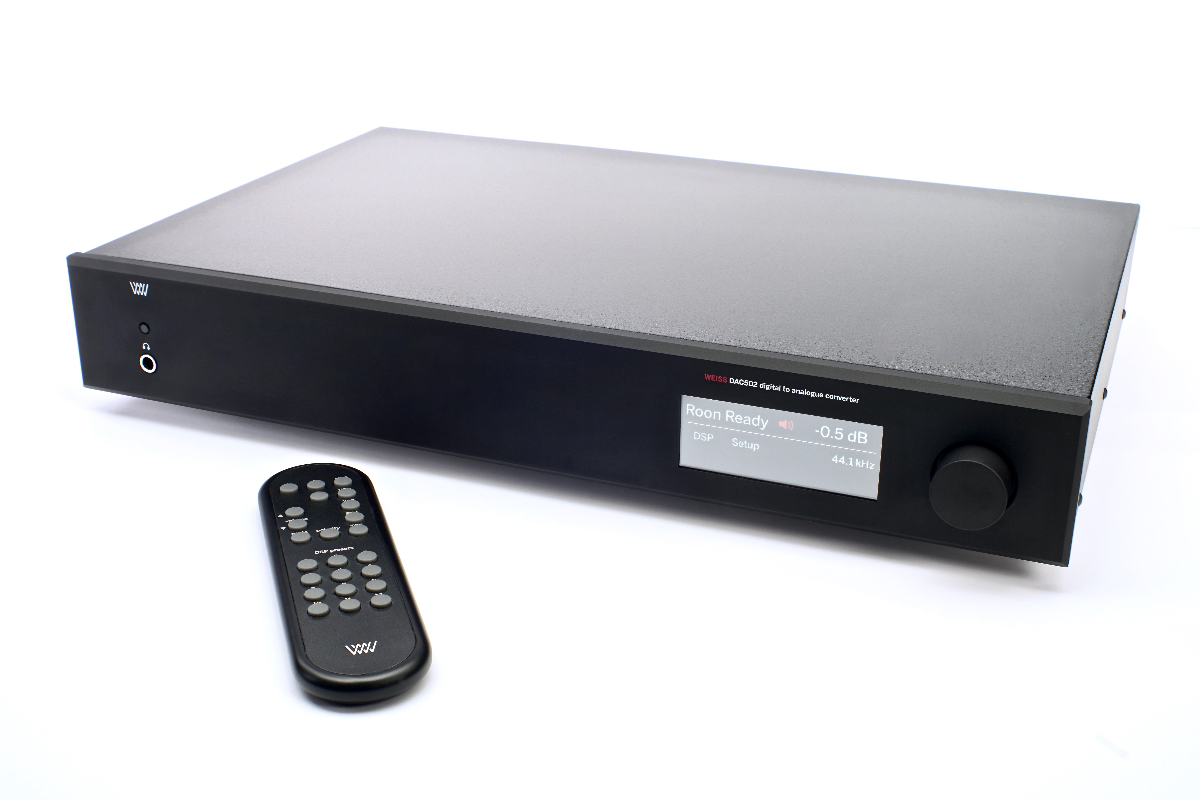

ACCURATE AND ADJUSTABLE The DAC502-MK2 is not only one of the best digital-to-analog converter available on the market today, offering an accurate and soulful presentation of the audio. It also includes user-configurable settings, from room EQ and de-essing to crosstalk cancellation, dynamics compensation, loudness control, and even vinyl emulation. HIGH CONNECTIVITY The DAC502-MK2 comes with digital inputs in numerous formats and has both balanced and unbalanced analog outputs. All standard sampling frequencies up to 384 kHz plus DSD x64 and x128 are supported. Furthermore, the unit functions as a preamp, headphone amp, and a streamer (UPnP/ROON). The DAC502-MK2 also seamlessly integrates with the JPLAY iOS app – you can enjoy your favorite tracks from Qobuz, Tidal, and your local collection, all in one unified library. The standard two-channel unit can be upgraded to the MK2 version. The MK2 has in its 2 channel mode a superior performance compared to the standard DAC502. A description of the MK2 version can be downloaded from here. DAC502 PRODUCT COMPARISON The DAC502-MK2 and its compact sibling DAC501-MK2 are identical, apart from the latter using a larger enclosure and an additional 4-pin headphone socket at the back of the unit. Both models are offered in aluminum or black finishes. The DAC502-MK2 includes all the audio processing features of the DSP502 — so one could view the latter unit as a DAC502-MK2 without the D/A conversion.
The Weiss DAC205-MK2 is a compact, high-performance D/A converter, featuring RCA/TOSLINK digital inputs and XLR/RCA analog outputs. It supports 44.1–192 kHz sampling, uses a high-end DAC chip with an upgraded analog section, and operates on 6-9V DC with 5.4W consumption. It is designed for audiophile and pro-audio use. Key Specifications of the Weiss DAC205-MK2: Digital Inputs: RCA (coaxial) and TOSLINK (optical). Analog Outputs: Balanced XLR and unbalanced RCA. Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, and 192 kHz. Digital Format: Supports AES/EBU or S/PDIF via the inputs. Output Level Control: Two toggle switches for analog output level adjustment. Power Supply: External 6 to 9 Volt DC input, 900mA at 6V / 600mA at 9V. Power Consumption: 5.4 Watts. Dimensions: 16.5 cm (D) x 10.5 cm (W) x 6 cm (H) / 6.5 x 4.2 x 2.4 inches. Difference from DAC204: The DAC205 lacks USB input and DSD-to-PCM conversion.
